1. Full-spectrum xenon arc lamps, when paired with window glass filters or outdoor filters, effectively simulate ultraviolet, visible and near-infrared light in sunlight, approaching real outdoor usage conditions.
2. Adjustable parameters such as temperature (Ambient ～ 100 ℃ ±2℃), humidity (50% ~ 98% RH), and irradiation intensity (35~150 W/㎡), to meet different standards (such as ISO, AATCC, etc.) and various custom conditions.
3. STD light fastness tester can simultaneously conduct tests such as spray and condensation, meeting the requirements of complex environment simulation.
4. Accelerated aging simulation can obtain outdoor light aging data equivalent to several months or years within a few hundred hours, significantly shortening the verification cycle of new materials and new formulas.

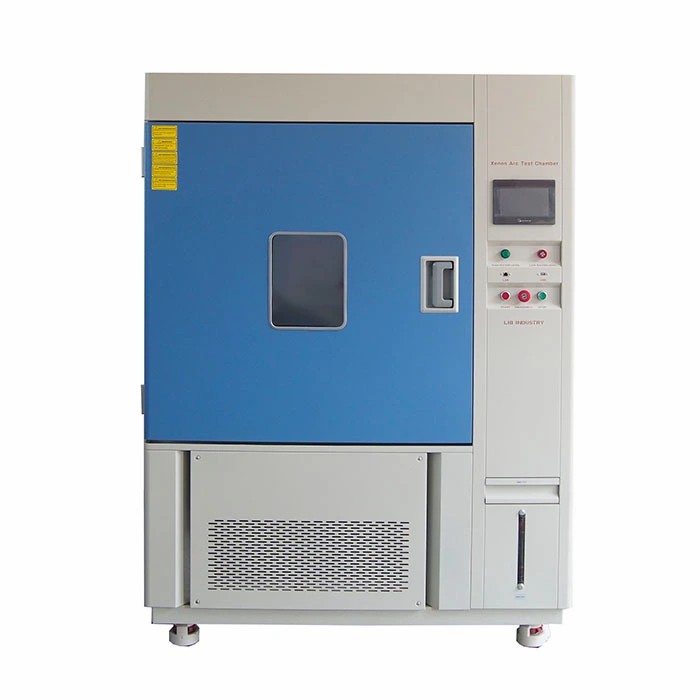

Model | STD XL-S-750 |
Internal Dimension (mm) | 950*950*850 mm |
Overall Dimension (mm) | 1400*1400*1950 mm |
Specimen Holder Size(mm) | 95*200 |
Specimen Capacity | 42pcs |
Chamber Type | Rotating Holder |
Irradiation Source | 1 piece of 4500w water-cooled xenon arc lamp |
Irradiance Range | 35~150 W/㎡ |
Bandwidth Measurement | 300nm~400nm (340nm or 420nm) |
Chamber Temperature Range | Ambient ～ 100 ℃ ±2℃ |
Black Panel Temperature | BPT 35 ～ 85 ℃ ±2℃ |
Humidity Range | 50% ~ 98% RH |
Humidity Deviation | ± 5% RH |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Controller | Programmable color LCD touch screen controller |
Water supply system | Automatic water supply, Water purification system |
Radiometer | UV Radiometer, Tolerance: ±5% |
Cooling System | Mechanical compression refrigeration system |
