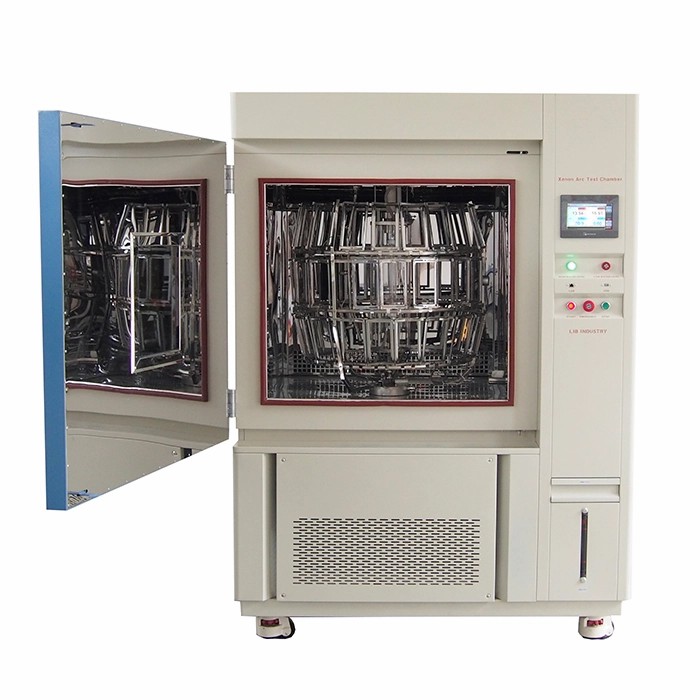

ASTM G155 Test Chamber

Features and Benefits1. ASTM G155 test chamber adopts xenon arc lamp as light source, producing

WhatsApp : +86 13816217984

Email : info@qinsun-lab.com

Content

Features and Benefits

1. ASTM G155 test chamber adopts xenon arc lamp as light source, producing high intensity and stable light, posing good simulation of natural sunlight. The radiation energy can be set and automatically controlled directly through the controller (340nm, 420nm, 300nm~400nm).

2. ASTM G155 test chamber can be used to test a variety of materials, including plastics, rubber materials, coatings and coatings, textiles and other fields.

3. Precise temperature and humidity control in ASTM G155 test chamber : Equipped with heating and cooling systems ranging from ambient to 100 ° C, the temperature of the workroom and blackboard can be directly set and automatically controlled.Humidity range is 50% to 98%RH.

4. ASTM G155 test chamber is equipped with a spray system to simulate the effects of dew or rain.

Specifications

Model

STD XL-S-750

STD XL-S-500

Internal Dimension (mm)

950*950*850 mm

500*600*700 mm

Overall Dimension (mm)

1400*1400*1950 mm

1000*1140*1920 mm

Specimen Holder Size(mm)

95*200

/

Specimen Capacity

42pcs

/

Chamber Type

Rotating Holder

Flat shelf

Irradiation Source

1 piece of 4500w water-cooled xenon arc lamp

Irradiance Range

35~150 W/㎡

Bandwidth Measurement

300nm~400nm (340nm or 420nm)

Chamber Temperature Range

Ambient ~ 100 ℃ ±2℃

Black Panel Temperature

BPT 35 ~ 85 ℃ ±2℃

Humidity Range

50% ~ 98% RH

Humidity Deviation

± 5% RH

Water Spray Cycle

1~9999H59M  (Adjustable)

Water supply system

Automatic water supply, Water purification system

Radiometer

UV Radiometer, Tolerance: ±5%

Cooling System

Mechanical compression refrigeration system


Disclaimer: The above content is for reference and communication only among industry insiders, and does not guarantee its accuracy or completeness. According to relevant laws and regulations and the regulations of this website, units or individuals who purchase related items should obtain valid qualifications and qualification conditions.
