Features and Benefits1. The UV lamps can be selected in different wavelength ranges, including
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
1. The UV lamps can be selected in different wavelength ranges, including UVA (315-400nm) and UVB (280-315nm), to provide a reliable simulation environment for material aging research.
2. Precise control of temperature, humidity, UV light and spray to create a complex and real use environment.
3. The high intensity of the old ultraviolet light can cause the aging phenomenon of the material in a short time, and speed up the evaluation process of the aging property of the material.
4. Workroom sizes can be customized according to requirements, and sample holders include standard flat sample holders and custom 3D sample holders for different types or sizes of samples.

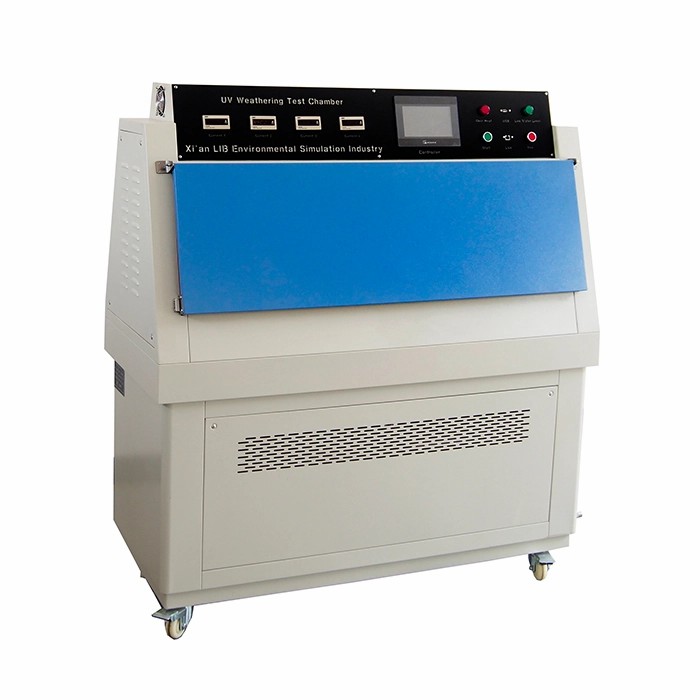

Model | UV-SI-260 |
Internal Dimension (mm) | 450*1170*500 |
Overall Dimension (mm) | 610*1330*1470 |
Specimen Holder Size(mm) | 75*150 |
Specimen Capacity | 56 Pieces |
Irradiation Source | Fluorescent UV lamps (8) - 40 W |
Temperature Range | Ambient ～ 90 ℃ ±2℃ |
Black Panel Temperature (BPT) | 35 ～ 80 ℃ |
Humidity Range | ≥95% RH |
Bandwidth | 290 ~ 400nm |
Irradiance Control | 0.3~20 W/㎡ |
Water Spray Cycle | 1~9999H59M (Adjustable) |
Distance of Specimen and lamp | 50mm |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Water Supply System | Automatic water supply, Water purification system |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
