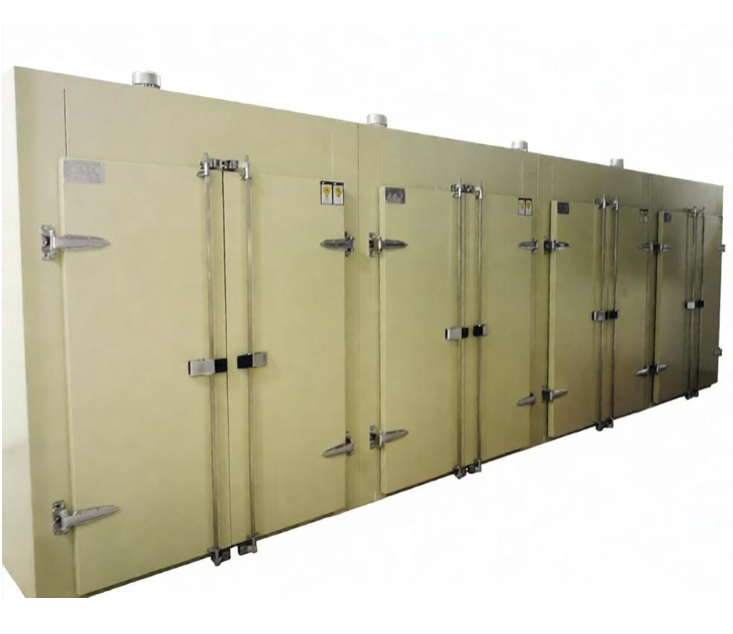

Transformer Specialized Oven

The Transformer Specialized Oven is an industrial-grade constant temperature heating equipment specially designed for insulation drying and curing treatment of power transformers, current transformers, reactors, and other electrical equipment during manufacturing and maintenance processes.

Product Applications

Insulation Drying:

Used to remove moisture from transformer coils and insulation materials.

Varnish Impregnation Curing:

Used for heating, drying, and curing transformer coils after insulation varnish impregnation.

Thermal Assembly Process:

Used for preheating iron cores or specific components during thermal assembly operations.

Technical Parameters

Product Features

Precise Temperature Control:

Adopts a microcomputer-based intelligent PID control algorithm to achieve accurate temperature regulation.

High Temperature Uniformity:

The unique air duct design ensures extremely small temperature differences throughout the chamber.

Safety and Explosion Protection:

Equipped with over-temperature alarm, moisture exhaust system, and explosion-proof pressure relief door.

Strong Load Capacity:

The bottom rail trolley design facilitates convenient loading and unloading of heavy transformers.

FAQ

Q1: How long does it usually take to dry a transformer in this oven?

A1:The drying time mainly depends on the transformer capacity and insulation material. Generally, the drying process takes approximately 12 to 48 hours.

Q2: How does the oven ensure uniform heating of all parts of a large transformer?

A2:The equipment adopts a high-volume, powerful double-direction circulating air duct system to ensure uniform heat distribution. The overall temperature difference inside the chamber can be controlled within ±3℃.

Q3: How are moisture and volatile gases generated during the drying process handled?

A3:The top of the oven is equipped with an automatic/manual moisture exhaust valve and exhaust fan, which can periodically discharge moisture and volatile gases from the chamber to the workshop exterior.

Q4: What safety protection measures are provided to prevent overheating?

A4:The equipment is equipped with an independent over-temperature protection device separate from the main control system. Once overheating occurs, the heating power supply will be automatically cut off, and an audible and visual alarm will be activated.

Q5: Is the trolley convenient for loading and unloading heavy transformers?

A5:Yes. The channel steel rail trolley is specially designed for heavy-load applications. It can be configured with either manual push-pull operation or electric traction for easy movement in and out of the oven.
