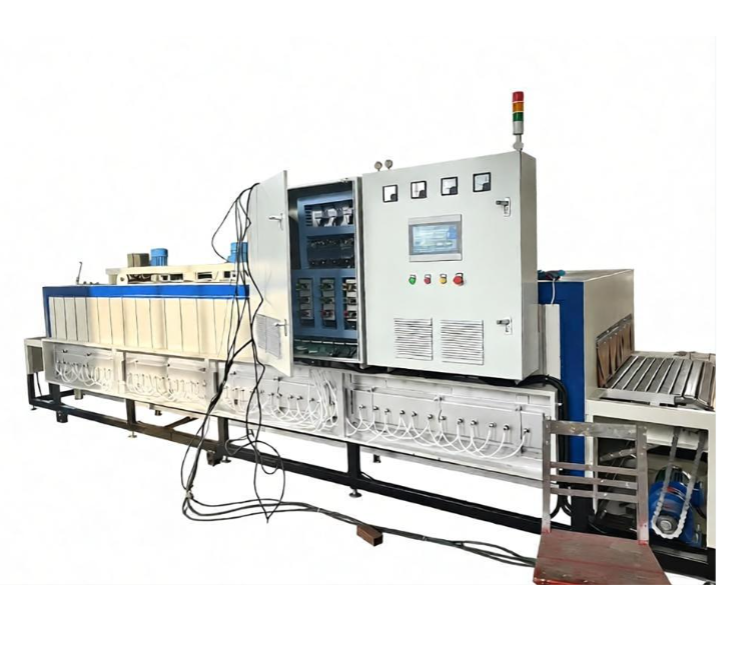

Metal Surface Paint Drying Furnace

The Metal Surface Paint Drying Furnace is a high-efficiency thermal processing equipment specially designed for coating curing after metal workpiece painting processes.The equipment uses convection heating or radiation heating technology to accelerate solvent evaporation in coatings and promote chemical cross-linking reactions, enabling rapid drying and hardening of paint films. It helps create a high-quality, durable, and weather-resistant protective coating on metal surfaces.

Product Applications

1. Automotive Manufacturing

Used for paint curing of:

Vehicle bodies

Wheels

Automotive components

2. Machinery Manufacturing

Used for surface drying and coating curing of:

Hardware cabinets

Machine housings

Construction machinery components

3. Rail Transit Industry

Used for coating curing of:

High-speed rail components

Metro vehicle bodies

Rail transit accessories

4. Home Appliance and Hardware Industry

Used for spray paint drying of:

Refrigerator housings

Washing machine shells

Various metal products

Product Parameters

Product Features

1. Precise Temperature Control

The equipment adopts PID microcomputer intelligent temperature control combined with a low-speed air circulation system, ensuring minimal temperature differences inside the furnace.

2. High Efficiency and Energy Saving

Equipped with a high-density rock wool insulation layer and optimized air duct design, reducing heat loss, improving heating efficiency, and achieving faster temperature rise.

3. Safe and Explosion-Proof Design

The furnace is equipped with an independent exhaust system and combustible gas concentration alarm device to quickly discharge volatile solvents and ensure safe production.

4. Intelligent Control System

Supports PLC and human-machine interface operation. The curing process curve can be programmed to achieve fully automatic production control.

FAQ

Q1: How long does it usually take to complete the drying process?

A: The drying time mainly depends on the type of coating material and metal thickness. Under normal conditions, conventional paints can be fully cured after baking at 140℃–180℃ for approximately 15–30 minutes.

Q2: What heating energy sources can be used? Which one is the most economical?

A: The equipment supports multiple heating methods, including:

Electric heating

Natural gas heating

Liquefied gas heating

Steam heating

For large-scale continuous production lines, natural gas heating is generally recommended due to lower operating costs. For small production facilities or areas with strict environmental requirements, electric heating is more convenient.

Q3: How does the equipment ensure the safety of paint solvent evaporation? Can it cause explosions?

A: The equipment is equipped with a forced exhaust ventilation system to continuously discharge volatile solvent gases. Optional safety configurations include combustible gas concentration monitoring devices and explosion-proof pressure relief doors to ensure safe operation.

Q4: What problems can uneven furnace temperature cause? How is it solved?

A: Uneven temperature distribution may cause:

Paint color differences

Coating bubbling

Incomplete curing

The equipment adopts a multi-section air guide plate design and powerful hot air circulation system to ensure temperature differences in different furnace areas are controlled within ±5℃.

Q5: Does the equipment support non-standard customization? What information is required?

A: Yes. The equipment can be fully customized according to customer requirements. The following information is required:

Maximum workpiece size and weight

Daily production capacity

Painting process requirements (curing temperature and time)

Available factory installation space.
