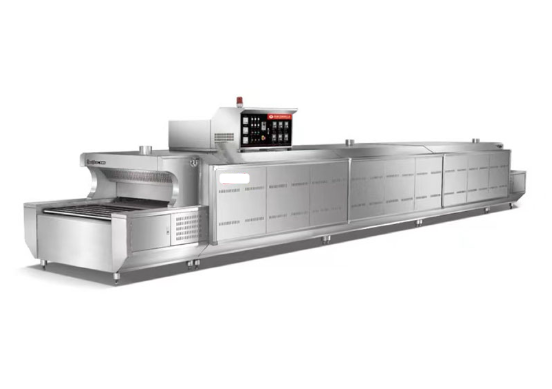

Stainless Steel Tunnel Oven (Vacuum Reflow Oven)

The Stainless Steel Tunnel Oven (Vacuum Reflow Oven) is a continuous thermal processing system designed for high-cleanliness and high-reliability applications. The internal chamber is fully constructed with stainless steel and welded using argon arc welding to minimize contamination and ensure durability. Combined with vacuum reflow technology, multi-zone heating, and hot air circulation, the oven delivers uniform temperature distribution and stable process performance, making it suitable for precision manufacturing environments.

Applications

This stainless steel tunnel oven is suitable for industries requiring high cleanliness and stable thermal processing:

Electronics: PCB, SMT reflow soldering, component drying and curing

Semiconductor: chip packaging and heat treatment

New energy: battery material processing and module soldering

Automotive electronics: high-reliability soldering applications

Precision industries: products requiring clean and contamination-free heating

Technical Parameters

Features

Full Stainless Steel Structure: Inner chamber and key components are made of stainless steel, ensuring corrosion resistance and cleanliness

Vacuum Reflow Technology: Effectively reduces voids and improves soldering quality

Uniform Heating Performance: Multi-zone PID control with optimized airflow ensures temperature consistency

Cleanroom Compatibility: Low-particle design with dust control system meets Class 100 requirements

Efficient Heating System: Quartz heating tubes provide rapid and stable heating

Stable Conveying System: Smooth transmission without vibration, jamming, or product damage

Advanced Automation: Siemens PLC and touchscreen interface support MES integration

Comprehensive Safety Protection: Includes phase sequence, overload, emergency stop, and over-temperature protection

Easy Maintenance: Motorized top cover allows safe and convenient access for maintenance

FAQ

1. What is the advantage of a stainless steel tunnel oven?

Stainless steel construction improves corrosion resistance, cleanliness, and durability, making it ideal for high-standard production environments.

2. Is this oven suitable for cleanroom applications?

Yes, it meets Class 100 cleanliness standards and includes dust reduction features.

3. How does vacuum reflow improve product quality?

It reduces air voids in solder joints, enhancing bonding strength and long-term reliability.

4. Can the oven be customized?

Yes, dimensions, temperature zones, conveyor types, and vacuum systems can all be customized.

5. Does the system support process monitoring?

Yes, it includes multi-point temperature recording and USB data export for full traceability.
