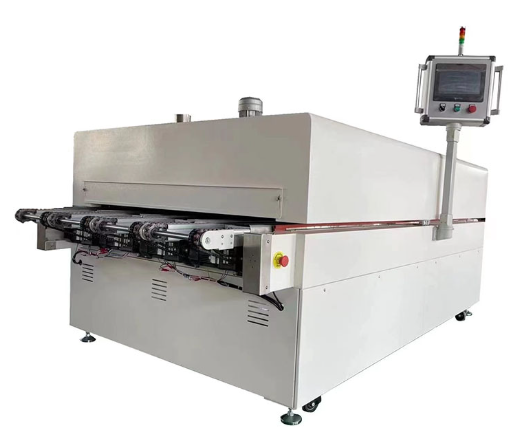

Non-standard Industrial Oven (Vacuum Reflow Oven)

The Non-standard Industrial Oven (Vacuum Reflow Oven) is a customized continuous thermal processing system designed to meet specific process requirements. It integrates vacuum technology, multi-zone heating, and hot air circulation to deliver stable and uniform thermal performance. Equipped with a stainless steel mesh belt conveyor and cleanroom-compatible structure, the system ensures smooth, contamination-free transport and high process reliability for advanced manufacturing applications.

Applications

This non-standard oven is widely used in industries requiring high precision and reliability:

Electronics: PCB, SMT reflow soldering, component curing

Semiconductor: chip packaging and thermal processing

New energy: battery module soldering and heat treatment

Automotive electronics: high-reliability soldering processes

Precision manufacturing: vacuum heat processing applications

Technical Parameters

Features

Custom-engineered Design: Fully tailored to specific product size, process flow, and capacity requirements

Vacuum Reflow Capability: Effectively reduces voids in solder joints and improves bonding reliability

High-precision Temperature Control: Multi-zone PID control ensures stable and consistent heating

Cleanroom-ready Structure: Stainless steel chamber and low-particle design meet Class 100 standards

Efficient Heating System: Quartz heating tubes provide fast heating and high thermal efficiency

Stable Conveying System: Smooth operation without vibration, jamming, or product damage

Advanced Automation: Siemens PLC with touchscreen interface, supports MES integration

Comprehensive Safety Protection: Includes phase sequence protection, overload protection, emergency stop, and over-temperature protection

Easy Maintenance: Motorized top cover allows convenient inspection and servicing

FAQ

1. What is the difference between a non-standard oven and a standard oven?

A non-standard oven is customized according to specific process and product requirements, offering greater flexibility in design, functionality, and performance.

2. What are the advantages of a vacuum reflow oven?

It significantly reduces voids in solder joints, improving product quality and long-term reliability.

3. Can the oven be customized for different production lines?

Yes, parameters such as size, number of heating zones, conveyor type, and vacuum system can be tailored.

4. Is it suitable for cleanroom environments?

Yes, it meets Class 100 cleanliness standards and is suitable for high-level cleanroom applications.

5. Does the system support process monitoring and traceability?

Yes, it features multi-point temperature monitoring and USB data export for full traceability and process control.
