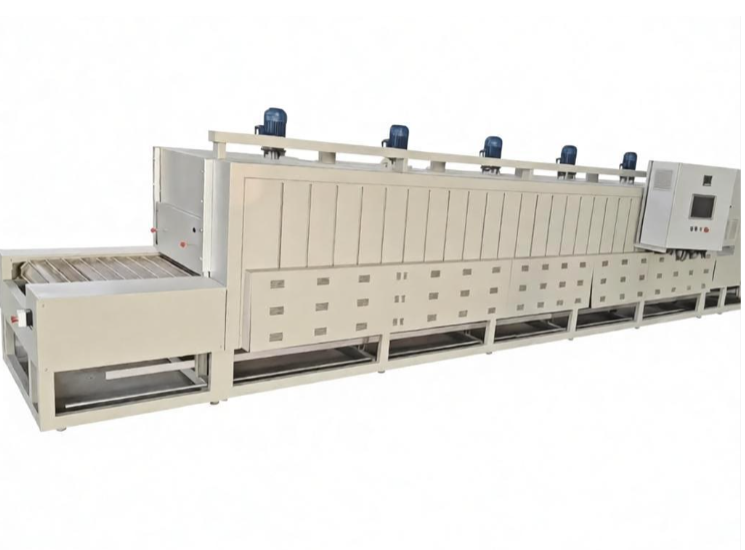

Filter Paper Moisture Drying Tunnel Oven

The Filter Paper Moisture Drying Tunnel Oven is a high-efficiency industrial drying system specially designed for the continuous online dehydration and drying of filter paper, filter elements, and other filtration materials.Through a conveyor system, the materials are continuously transported through the heating tunnel, enabling large-scale, standardized drying with precise temperature control.

Core Applications

1. Automotive Filter Industry

Used for moisture drying of:

Engine oil filter paper

Air filter media

Fuel filter paper

before subsequent curing or forming processes.

2. Industrial Filtration Materials

Used for drying after cleaning processes of:

Polymer fiber filter materials

Glass fiber filter media

Industrial filtration fabrics

3. Medical Filtration Membranes

Used for precision-controlled dehydration and drying of:

Pharmaceutical filter paper

Biochemical analysis filter membranes

where strict temperature control is required.

4. Environmental Protection Filter Materials

Used for continuous drying of:

Dust collection filter bags

Water treatment membrane substrates

Other environmental filtration materials

Applicable Standards

GB/T 30997

Safety Technical Requirements for Industrial Hot Air Fans and Heating Operations

Specifies safety requirements for industrial heating and hot air circulation equipment.

GB 5226.1

Electrical Safety of Machinery — Electrical Equipment of Machines — Part 1: General Requirements

Regulates electrical safety design and control requirements for machinery.

QC/T 484

Automotive Paint Coating Standards

Provides process reference requirements related to coating curing and drying processes in automotive filter manufacturing.

HG/T 20687

Design Specification for Anti-Static and Grounding of Chemical Electronic Equipment

Provides safety requirements for electrostatic protection and grounding design.

Equipment Features

1. Continuous Production Line Operation

The tunnel-type structure supports:

Mesh belt conveying

Chain conveyor systems

and can be seamlessly integrated with upstream paper-making, cutting, and filter material production lines.

2. Precision Multi-Zone Temperature Control

The tunnel is divided into multiple independent temperature zones along the conveying direction.

Each zone can independently control:

Heating stage

Constant temperature stage

Cooling stage

to achieve optimized drying processes for different materials.

3. Hot Air Circulation System

The equipment adopts a micro-perforated air circulation design with uniform airflow distribution.

Advantages include:

Stable drying performance

Prevention of lightweight filter paper being blown away

Reduction of deformation or damage during transportation

4. High-Efficiency Energy Saving and Thermal Insulation

The furnace body uses high-density aluminum silicate fiber insulation materials.

Features include:

Excellent heat retention performance

Low heat loss

Low external surface temperature of the equipment shell

which improves energy efficiency and operational safety.

FAQ

Q1: What heating methods are commonly used in this equipment?

A:The main heating methods include:

Electric heating (infrared heating / hot air circulation heating)

Natural gas heating

For filter paper drying applications, infrared heating combined with hot air circulation is commonly selected because it can quickly penetrate paper fibers while maintaining uniform temperature distribution.

Q2: How does the equipment prevent lightweight filter paper from being blown away or deformed during drying?

A:The equipment adopts:

Downward air supply or side airflow micro-circulation design

Adjustable airflow speed control

Pressure mesh conveying systems or dedicated fixtures

These solutions ensure that lightweight filter paper remains flat and stable during transportation and drying.

Q3: Can the drying temperature and conveyor speed be adjusted?

A:Yes.The system uses:

PLC control

Intelligent temperature controllers

Frequency converters

for precise temperature adjustment. The conveyor speed adopts variable frequency stepless speed regulation, allowing the equipment to adapt to filter papers with different:

Basis weights

Moisture contents

Material structures

Q4: What is the typical drying temperature for filter paper?

A:The normal drying temperature range is generally 80°C to 150°C.

The actual temperature depends on:

Filter paper material type (such as wood pulp paper or fiberglass paper)

Moisture content

Presence of heat-sensitive resin binders or curing agents

Q5: What safety protection features does the equipment have?

A:The equipment is equipped with multiple safety protection functions, including:

Over-temperature alarm and automatic power cutoff

Conveyor overload protection

Abnormal smoke exhaust interlock control

Conveyor belt deviation alarm

These safety systems ensure reliable operation during large-scale continuous production.

The Filter Paper Moisture Drying Tunnel Oven provides an efficient and stable drying solution for filtration material manufacturers. With advantages including continuous operation, precise temperature control, uniform airflow distribution, energy-saving insulation design, and intelligent safety protection, it is widely used in automotive filters, industrial filtration, medical filtration, and environmental protection material production industries.
