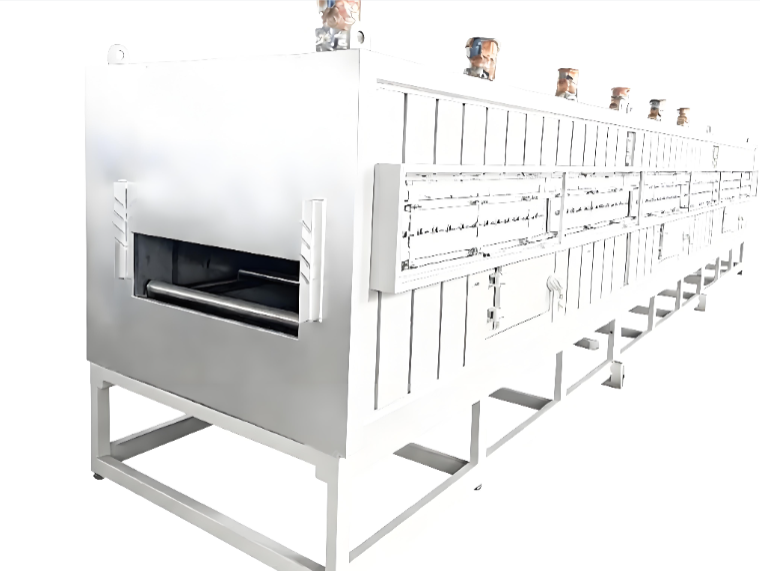

Steel Belt Film Baking Tunnel Oven

Steel Belt Film Baking Tunnel Oven is a high-precision, continuous industrial heat treatment and drying system. It uses a high-strength stainless steel belt as the conveying carrier and is specially designed for continuous heating, drying, curing, and baking of cast film, coated films, and various thin-film materials.

Core Applications

New Energy Battery Industry

Used for the continuous drying and curing of lithium battery separators and electrode coating films.

Polymer Materials Industry

Used for the casting process and high-temperature baking of PI (polyimide) films, PET films, and optical films.

Electronics and Semiconductor Industry

Used for drying coated films on flexible printed circuit board (FPC) substrates and electronic paste films.

Chemical and Advanced Materials Industry

Used for solvent removal and thermal curing of various functional coatings and composite film materials.

Equipment Features

1. Extremely High Flatness

The stainless steel belt surface is as smooth as a mirror, preventing wrinkles, local deformation, or pinholes during thermal expansion and heating of the film material.

2. Highly Precise Temperature Control

The system usually adopts multi-zone independent microcomputer temperature control. The temperature accuracy can reach ±1°C or even higher precision.

3. High-Efficiency Continuous Production

With a long and narrow tunnel structure, the equipment supports fully automatic loading and unloading, enabling 24-hour continuous mass production on automated production lines.

4. High Cleanliness

The stainless steel belt itself does not generate particles or residue and is easy to clean, meeting the production requirements of Class 10.000 or Class 1.000 cleanrooms.

5. Energy Saving and Environmental Protection

The system integrates advanced hot air micro-circulation or infrared radiation heating technology and is equipped with efficient exhaust systems and heat recovery devices to reduce energy consumption and improve environmental performance.

FAQ

Q1: Why must film baking use a steel belt instead of a conventional mesh belt or conveyor belt?

A:A mesh belt may cause uneven heating due to its mesh structure and may leave marks on the film surface. Conventional belts (such as PVC or silicone belts) have limited temperature resistance and are prone to deformation. The continuous stainless steel belt provides an extremely flat mirror-like supporting surface and can withstand high temperatures, ensuring that film materials are processed without surface marks while achieving uniform heating.

Q2: What heating methods are commonly used in this equipment?

A:The main heating methods include hot air circulation heating, infrared (IR) radiation heating, or a combination of both. These heating methods ensure rapid and uniform heat transfer into the film material, accelerating solvent evaporation and improving drying efficiency.

Q3: How does the equipment prevent fire or explosion caused by solvent evaporation during the baking process?

A:The oven chamber is equipped with an explosion-proof exhaust system and a Lower Explosive Limit (LEL) solvent concentration detection system. These systems can quickly remove volatile flammable gases and automatically trigger alarms or shut down the heating system when the solvent concentration exceeds the safety limit.

Q4: How does the equipment ensure uniform temperature distribution throughout a tunnel oven that may extend for dozens of meters?

A:The equipment adopts a segmented multi-zone independent temperature control design. Each temperature zone is equipped with independent heating elements, circulation fans, and temperature sensors. Through precise airflow management and optimized air duct design, the system minimizes longitudinal and transverse temperature differences inside the tunnel oven.

Q5: How should a high-precision steel belt film baking tunnel oven be maintained daily?

A:Daily maintenance includes regularly cleaning film residues and solvent deposits from the steel belt surface, inspecting the automatic belt tracking and correction system to prevent belt deviation and damage, periodically calibrating temperature sensors (thermocouples) in each heating zone, and cleaning the filters of the hot air circulation fans.

Steel Belt Film Baking Tunnel Oven provides a highly stable, clean, and precise thermal processing solution for advanced film manufacturing industries, especially in applications requiring strict control of film flatness, temperature uniformity, and production consistency.
