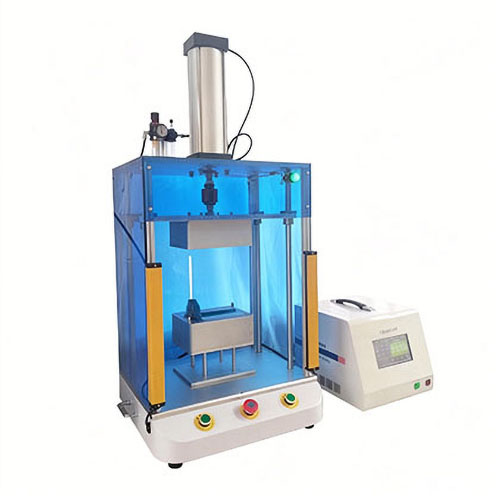

Electric Toothbrush Air Tightness Testing Equipment

The Electric Toothbrush Air Tightness Testing Equipment is a dedicated instrument used to evaluate the sealing performance of electric toothbrush products. It detects micro-leakage by analyzing pressure variations, ensuring that the product meets waterproof requirements such as IPX7. The system provides stable, high-precision testing for mass production quality control in personal care product manufacturing.

Application

This equipment is used for air tightness and waterproof performance testing of electric toothbrushes and related sealed handheld devices. It is suitable for finished product inspection and structural sealing verification, including housing joints, charging port sealing, and internal cavity integrity. It is widely applied in personal care electronics manufacturing, waterproof consumer electronics testing, and small household appliance quality control.

Standards

(1) IEC 60529 (IP Code protection classification)
(2) IPX7 waterproof rating standard (1 meter water immersion for 30 minutes without failure)
(3) ISO 20653 (Degrees of protection for road vehicles – reference sealing principles)
(4) GB/T 4208 (Enclosure protection standard)
(5) Internal leakage test validation standards for consumer electronic sealing performance

Parameters

Features

(1) High-precision differential pressure detection with ±1 Pa-level sensitivity
(2) Supports IPX7 waterproof sealing verification testing
(3) Dual testing methods including differential pressure and indirect pressure mode
(4) Stable measurement system with high repeatability and low drift
(5) Suitable for high-volume production line testing
(6) Fast response and short cycle time for efficient inspection
(7) Custom fixture compatibility for different toothbrush structures

Accessories

(1) Custom sealing fixture for electric toothbrush housing
(2) Differential pressure sensor module
(3) Air pressure regulation and filtration unit
(4) PLC control system module
(5) Standard leakage calibration reference unit

Test Procedures

(1) Place the electric toothbrush into the customized sealing fixture
(2) Select appropriate test method (differential or indirect pressure)
(3) Set test pressure parameters according to product specification
(4) Start pressurization and stabilize system pressure
(5) Monitor pressure change and record leakage value
(6) Automatically compare results with acceptance criteria
(7) Output test result and store data for traceability

Maintenance Information

(1) Regular calibration of pressure sensors to ensure measurement accuracy
(2) Check sealing fixtures for wear or deformation to prevent leakage error
(3) Maintain clean and dry air supply to avoid contamination of the system
(4) Inspect pipelines and connectors regularly for air leakage
(5) Perform periodic system diagnostics and software checks

Conclusion

The Electric Toothbrush Air Tightness Testing Equipment provides a reliable solution for waterproof and sealing performance verification of consumer electronic products. With high accuracy, stable operation, and fast testing capability, it ensures product compliance with IPX7 standards and improves manufacturing quality control efficiency.

FAQ

(1) What is this product?
The Electric Toothbrush Air Tightness Testing Equipment is a precision testing device used to evaluate the sealing performance of electric toothbrushes. It detects micro-leakage through pressure variation analysis to ensure waterproof performance meets standards such as IPX7.

(2) What is this product used for?
It is used for waterproof and sealing inspection of electric toothbrushes during production. It checks housing sealing, internal structure integrity, and charging port tightness to ensure product reliability and safety.

(3) What is the working principle of this product?
It works by using differential pressure or indirect pressure methods. The system compares pressure changes in a sealed chamber or product cavity to determine whether leakage exists and whether the product passes the waterproof test.

(4) Why is this product important?
It ensures that electric toothbrushes can safely operate in wet environments without water ingress. It helps meet IPX7 standards, reduces product failure rates, and improves overall product reliability and customer safety.

(5) What industries is this product suitable for?
It is widely used in personal care electronics, household appliance manufacturing, waterproof consumer electronics testing, and quality inspection laboratories focused on sealed electronic products.
