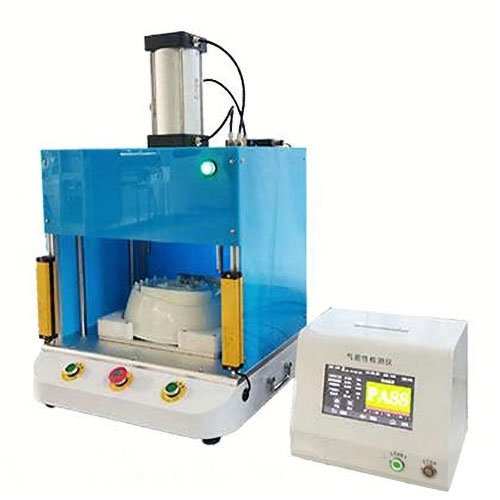

Industrial Endoscope Lens Air Tightness Tester

The Industrial Endoscope Lens Air Tightness Tester is a high-precision instrument designed for sealing performance evaluation of industrial endoscope lenses and optical assemblies. It detects micro-leakage and pressure variations to ensure the product meets required airtightness standards. The system supports multiple test modes and is suitable for both semi-finished and finished products, providing reliable non-destructive testing for quality control in optical manufacturing.

Application

This equipment is used for air tightness testing of industrial endoscope lenses, optical probe assemblies, medical endoscope components, and precision imaging modules. It can test products with or without pressure ports and is suitable for semi-finished housings, finished sealed units, and structural components requiring leak verification. It is widely used in medical device manufacturing, industrial inspection equipment, precision optics, and electronics assembly industries.

Standards

(1) IEC 60529 (IP protection classification)
(2) ISO 20653 (Road vehicles protection degrees)
(3) GB/T 4208 (Enclosure protection standard)
(4) GB/T 2423.23 (Environmental sealing and pressure test methods)
(5) ISO 8573 (Compressed air quality standards)

Parameters

Features

(1) Supports multiple test modes including positive pressure, negative pressure, and volumetric testing
(2) High-precision sensor system with 0.02% F.S measurement accuracy
(3) Fast response time with stable leakage detection within 5 seconds
(4) 10-inch touchscreen interface with intuitive operation design
(5) Non-bridge valve island sealing structure for improved stability
(6) Four-stage pressure regulation to eliminate external pressure fluctuations
(7) Multi-interface design supporting PLC, Ethernet, and external device control
(8) Expandable system for barcode scanning and data traceability integration
(9) Non-destructive testing process that does not damage product structure

Accessories

(1) Standard sealing fixture for endoscope lenses
(2) Multi-channel pressure control module
(3) Air pressure regulation and filtration system
(4) PLC control interface module
(5) Calibration standard leak device

Test Procedures

(1) Place the endoscope lens into the corresponding fixture
(2) Select appropriate test mode (positive/negative/volumetric pressure)
(3) Set test pressure and parameters via touchscreen interface
(4) Start pressure application and enter stabilization phase
(5) Monitor pressure changes for leakage detection
(6) System automatically evaluates pass/fail result
(7) Store and export test data for traceability

Maintenance Information

(1) Regular calibration of pressure sensors to maintain measurement accuracy
(2) Inspect fixtures for wear and sealing integrity
(3) Ensure clean and dry compressed air supply
(4) Periodically check pipeline and valve system for leakage
(5) Update system software and perform functional self-checks regularly

Conclusion

The Industrial Endoscope Lens Air Tightness Tester provides a reliable and flexible solution for precision sealing inspection of optical and endoscope components. With multiple test modes, high accuracy, and strong system stability, it ensures product quality, improves production yield, and supports full traceability in modern manufacturing environments.

FAQ

(1) What is this product?
The Industrial Endoscope Lens Air Tightness Tester is a precision testing device used to evaluate the sealing performance of endoscope lenses. It detects micro-leakage through pressure change analysis, ensuring reliable airtight performance and stable optical operation in industrial applications.

(2) What is this product used for?
It is used for air tightness testing of endoscope lenses, optical probes, and precision imaging modules. It supports testing of semi-finished and finished products to ensure sealing quality in medical, industrial inspection, and optical manufacturing fields.

(3) What is the working principle of this product?
The system works by applying positive, negative, or volumetric pressure to the test object and monitoring pressure variations. Leakage is determined by analyzing pressure decay or stability deviations within a controlled time period.

(4) Why is this product important?
It ensures that optical and endoscope components maintain sealing integrity, preventing internal contamination or failure. This improves product reliability, reduces defect rates, and supports high-standard quality control requirements.

(5) What industries is this product suitable for?
It is widely used in medical device manufacturing, industrial inspection equipment, precision optics, electronics production, and any field requiring high-precision airtightness verification of optical components.
