Contact Heat Transmission Tester

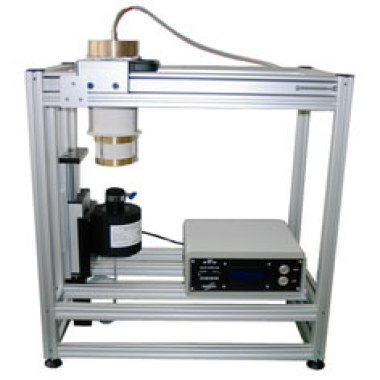

The Contact Heat Transmission Tester is a precision instrument designed to evaluate the heat transfer resistance of protective clothing, thermal gloves, and other fire-resistant materials. By simulating direct contact with a high-temperature surface under controlled pressure, it measures the time required for the material temperature to rise by 10°C, providing an objective metric of thermal protection performance.

Application

(1) Medical Protective Clothing: Helps develop and screen garments that minimize heat accumulation and wearer discomfort during extended use, reducing the risk of heat stress.

(2) Industrial and Fire Protection Clothing: Evaluates thermal insulation performance under high-temperature exposure, ensuring worker safety and compliance with fire protection standards.

(3) R&D and Material Testing: Supports development of new thermal protective materials and verification of multi-layer protective ensembles.

(4) Quality Control: Confirms consistency of thermal resistance across production batches.

Standards

AQ 6103: Protective Clothing Contact Heat Test (China)

EN 702: Protective Clothing Thermal Insulation (Europe)

EN 407 / EN 12477: Protective Gloves Heat Resistance (Europe)

ISO 12127 / ISO 11612: Heat Transmission & Protective Clothing (International)

GB 38453 / GB/T 38306: Protective Clothing Thermal Properties (China)

ISO 11092: Textile Thermal & Water-Vapor Resistance

ASTM D1518-17 / ASTM F1868: Thermal Resistance of Batting Systems & Clothing Materials

ISO 5085-1 / ISO 9920: Ergonomics & Thermal Insulation Evaluation

Technical Parameters

Features

(1) Precision Measurement: Measures critical thermal transmission times with high accuracy for standard-compliant testing.

(2) Dual Environment Simulation: High-temperature side simulates heat source; low-temperature side maintains stable reference, ensuring reliable differential measurement.

(3) Professional Software: Supports automatic calculation of heat transfer index, multi-sample averaging, and data export.

(4) Safety and Stability: Heat-shielded holder and anti-slip grid ensure repeatable, secure testing conditions.

(5) Versatility: Applicable to textiles, multi-layer protective clothing, gloves, and other high-temperature protective materials.

FAQ

1. What is this product?

A specialized instrument for measuring the resistance of protective clothing and gloves to direct contact heat, providing quantitative thermal protection metrics.

2. What is this product used for?

It evaluates heat transfer performance of materials under direct high-temperature contact, supporting design, safety verification, and compliance testing.

3. What is the working principle of this product?

The sample is held in contact with a controlled high-temperature surface; the system measures the time for the material to reach a 10°C temperature increase under specified pressure, calculating thermal resistance.

4. Why is this product important?

It ensures protective clothing and gloves provide adequate heat insulation, prevents burn injuries, supports compliance with ISO, EN, ASTM, and national standards, and informs material and garment design decisions.

5. What industries is this product suitable for?

Fire protection, industrial safety, medical protective apparel manufacturing, R&D laboratories, and textile quality control for thermal insulation materials.
