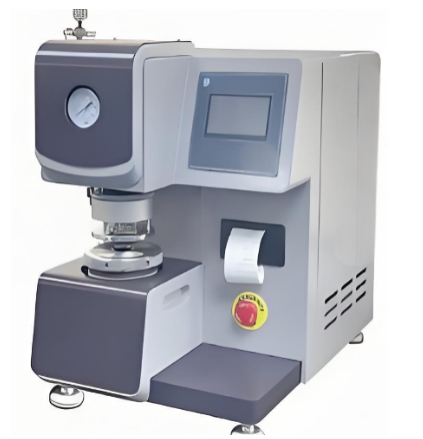

Digital Bursting Strength Tester G-DB460

Brand:QINSUN

Model:G-DB460

Introduction

A Digital Bursting Strength Tester is a testing instrument used to determine the bursting resistance of paper, cardboard, textiles, and packaging materials under pressure. It applies uniform hydraulic or pneumatic pressure to a specimen until it ruptures, and digitally records the maximum bursting strength value.The equipment features high testing accuracy, easy operation, and clear, intuitive results. It is widely used in quality control and material performance evaluation applications.

Application

Fully pneumatic instrument for intelligent bursting strength testing suitable for textile, non-oven, paper, board and plastic industries.

International Standard/Certificate

(1) Complies with ISO 13938-2

(2) UKAS accredited calibration system

Parameters

Features

(1) Specimen Sizes: up to 100 cm²

(2) Maximum bursting pressure: 1000kPa

(3) Linear rate of pressure increase

(4) Distension measurement: up to 70 mm with an accuracy of ±0.5%

(5) Automatic diaphragm correction facility

(6) Tool-free change of dome assemblies and diaphragms

(7) Multi-lingual, menu driven software option

(8) Must have option for Comprehensive Statistical Analysis

(9) At least 10 editable preset standards

(10) Must be fully Pneumatic

Accessories

(1) 1 x Mains Lead, 1 x Footswitch

(2) 1 x Flexible Blue Nylon Pipe (2m)

(3) 1 x Pneumatic Adaptor for US, 1 x Operator's Guide

(4) 1 x 7.3 cm2 Dome Assembly, 1 x 50 cm2 Dome Assembly

(5) 1 x Packs of 10 Diaphragms

Warranty

One year warranty
