Brand:QINSUN
Model:G-ER203

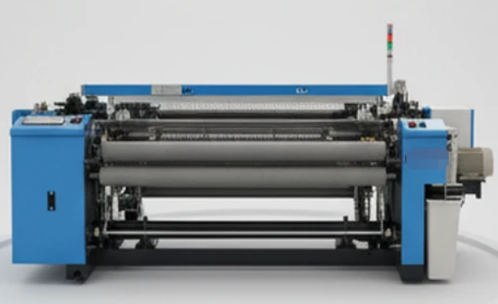

Electronic Rapier Loom Machine is a high-efficiency weaving system designed for precise and versatile fabric production. It uses electronic control with rapier insertion technology to achieve smooth and accurate weft insertion, suitable for a wide range of yarn types and fabric structures. The machine ensures stable performance, low noise, and high productivity, making it ideal for modern textile manufacturing.
Application | To produce terry towel |
Reed Width | Min: 200 cm (78"), 5750 px (90"), 6500 px (102"), 7000 px (110") |
Rotation Speed | 240 RPM (78") |
Weft Selection | 4–8 colors |
Let-off Type | Up: Positive electric let-off; Down: Electric let-off |
Terry Raising Type | Cam type movable reed terry raising |
Terry Height | Stepless adjustment from 2 to 12 mm |
Shedding Mechanism | Upper-placed electronic |
Weft Stop Motion | Piezoelectric control |
Warp Stop Motion | 2-crow electric warp stop |
Color Selection | Mechanical color select |
Electric Control | PLC system |
One year warranty
