Brand:QINSUN
Model:G-JS160

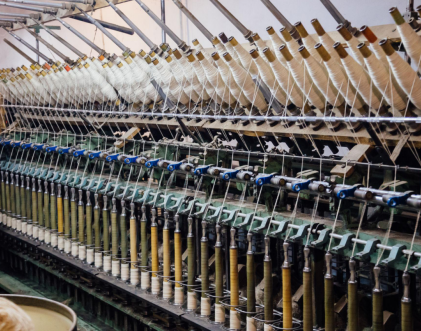

The jute spinning frame is the core yarn-forming equipment in a jute textile production line. It is used to further stretch and twist the jute fiber slivers after carding and drawing, and finally spin them into jute yarn.
Item | Specification |
Hand of drive | Both R.H. & L.H. |
Type of Frame | apron Draft |
Flyer type | Boxter. |
No. of Yarn | 8 - 28 lbs/spy |
No. of spindles per frame | 24 |
Traverse & Diameter of bobbin | 71/2'' X 31/2'' |
Dead spindle Diameter | 3/4'' (ball spring loaded) |
Diameter of bobbin carrier tube | 7/8 |
Diameter of bottom roller | 21/4'', |
Diameter of retaining roller | 21/4'', |
Flutes per inch on retaining roller | 20 |
Diameter & face of pressing roller | 61/8'' x 5/8'' |
Draft range | upto-20 |
Twist range | upto-10 |
Diameter of Cylinder | 57/8'' |
Diameter & type of wharves | 2'' Special |
Width of tape | 1 |
Range of flyer speed | 3400-4000 rpm |
Individual motor drive tape and revolution of the same
| 15
HP, 1440 rpm & Starter |
Position of motor | Inside Framework |
One year warranty
