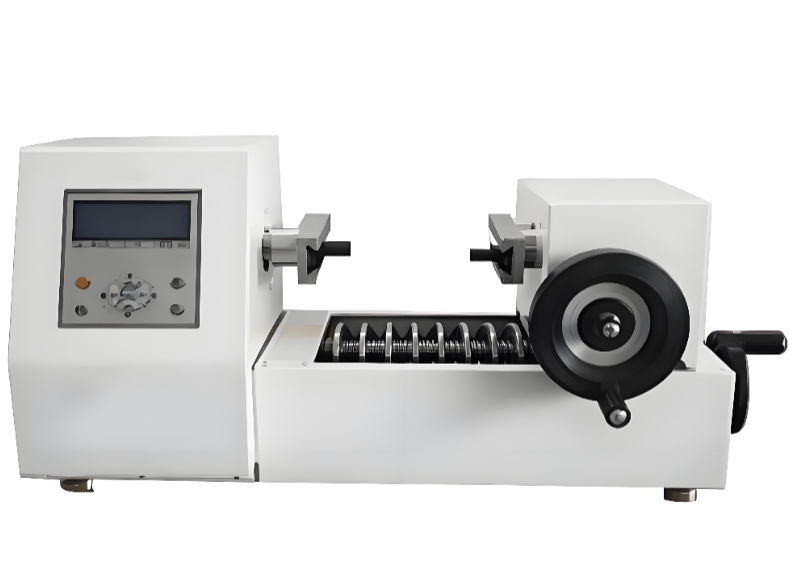

Horizontal Manual Digital Spring Torsion Testing Machine

The Horizontal Manual Digital Spring Torsion Testing Machine is mainly used to determine the torsional mechanical properties of various springs, raw materials, semi-finished components, and finished components. Test specimens are mounted between adjustable fixtures, allowing the test space to be adjusted according to different specimen sizes. The machine adopts manual loading and digital display, enabling direct measurement and display of torque, torsion angle, and other parameters. It is suitable for torsional performance testing in spring manufacturing, machinery manufacturing, quality inspection, research institutions, and universities.

Application

The Horizontal Manual Digital Torsion Testing Machine is mainly used to test the torsional properties of raw materials, semi-finished components, and finished components. Test specimens are installed between adjustable fixtures, allowing the machine to accommodate specimens of different sizes and perform torsional mechanical performance tests.

Applicable Standards

GB/T 45870.3-2026 — Springs — Measurement and Test Parameters — Part 3: Cold-Formed Cylindrical Helical Torsion Springs

GB/T 1239.3-2009 — Cold Coiled Cylindrical Helical Springs — Technical Specifications — Part 3: Torsion Springs

GB/T 2611-2022 — Testing Machines — General Requirements

Technical parameters

Main Features

Digital Display: Torque, torsion angle, and other test parameters are displayed digitally for easy reading.

Manual Operation: Manual loading provides simple and convenient operation for routine torsional performance testing.

High-Precision Measurement: Relative error of torque indication ≤±1%; relative repeatability error of torque indication ≤±1%.

Multiple Torque Ranges: Available models include 500 N·mm, 1000 N·mm, 2000 N·mm, 5000 N·mm, 10 N·m, 20 N·m, and 30 N·m, with customized ranges available.

High Angle Resolution: Minimum torsion angle resolution is 0.1°.

Adjustable Test Space: Standard test travel is 70 mm, with customization available according to specimen requirements.

Wide Speed Range: Speed control range of 0.1–720°/min, with speed control accuracy of ±1%.

Safety Protection: Equipped with dual mechanical and software protection systems for enhanced operational safety.

Wide Applications: Suitable for testing torsion springs, helical springs, and other elastic components and mechanical parts with torsional characteristics.
