The Vertical Manual Spring Torque Testing Machine is mainly used for torsional performance testing o
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

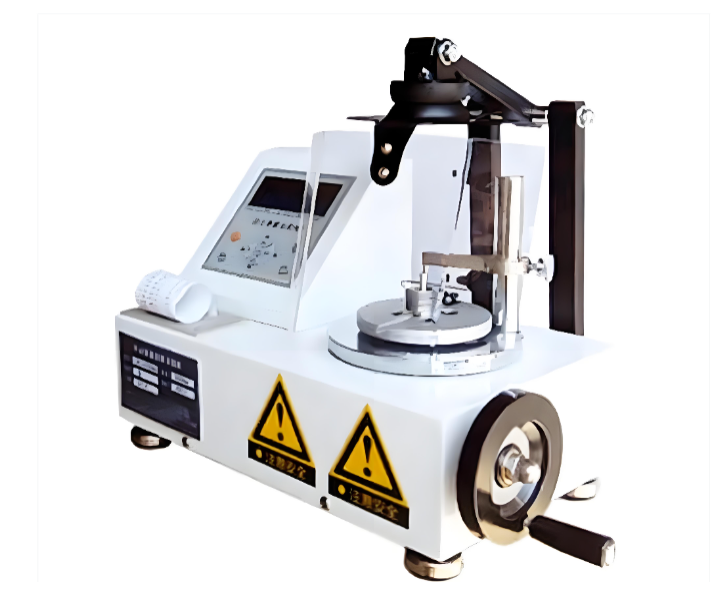

The Vertical Manual Spring Torque Testing Machine is mainly used for torsional performance testing of various springs, including torsion springs, spiral springs, clock springs, and valve springs. It determines the torque at a specified rotation angle or the rotation angle at a specified torque, allowing accurate evaluation of the torsional characteristics of spring components.The machine can also be used to test the torsional performance of other elastic components and friction mechanisms. Manual operation allows the complete spring testing cycle to be performed conveniently, or individual parameters to be measured according to specific requirements. Test values can be recorded and printed as test reports.
Torsion springs
Spiral springs
Clock springs
Valve springs
Other elastic components
Friction mechanisms
Spring components used in electrical equipment and mechanical systems
It is suitable for spring manufacturers, electrical equipment manufacturers, power machinery manufacturers, universities, research institutes, and quality inspection laboratories.
GB/T 1239.3 — Cold Coiled Helical Springs — Technical Requirements
GB/T 1239.6 — Cold Coiled Helical Springs — Test Methods
GB/T 1805 — Spring Terminology
GB/T 2611 — General Technical Requirements for Testing Machines
JB/T 7367 — Torsion Spring Testing Machine
JB/T 7796 — Torsion Testing Machine
JJG 269 — Verification Regulation for Torsion Testing Machines
ISO 2162 — Technical Product Documentation — Springs
ASTM E2207 — Standard Practice for Strain-Controlled Axial-Torsional Fatigue Testing of Metallic Materials
| Item | Specification |
|---|---|
| Maximum Test Torque | 50 N·mm, 100 N·mm, 200 N·mm, 500 N·mm, 1.000 N·mm, 2.000 N·mm, 5.000 N·mm |
| Testing Machine Accuracy Class | Class 1.0 / Class 0.5 |
| Minimum Torque Reading | 1/10.000 of maximum torque |
| Minimum Torsion Angle Reading | 0.1° |
| Deformation Indication Error | ≤ ±(50 + 0.15L) |
| Test Force Accuracy | ±1% |
| Displacement Measurement Accuracy | ±1% |
| Appearance | Complies with GB/T 2611 |
| Completeness | Complies with applicable standard requirements |
| Protection Function | Overload protection |
| Power Supply | 220 V, 50 Hz |
Vertical Manual Structure: Simple and convenient manual loading for routine spring torque testing.
Torque–Angle Testing: Measures torque at a specified angle or angle at a specified torque.
Wide Application: Suitable for various torsion springs, spiral springs, clock springs, valve springs, and other elastic components.
Flexible Testing: Supports complete-cycle testing as well as individual parameter measurement.
Adjustable Test Position: The fixture and test position can be adjusted according to specimen requirements.
Direct Test Reading: Test torque and rotation angle can be conveniently observed during operation.
Simple Operation: Manual control makes the machine easy to operate and suitable for laboratory and production inspection.
Test Data Recording: Test values can be recorded and organized for quality-control purposes.
Report Printing: Supports printing of test value reports for documentation and traceability.
