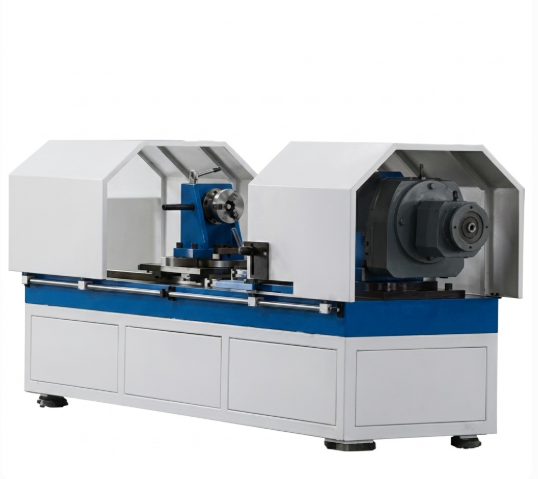

Automotive Half Shaft Torsion Testing Machine

The Automotive Half Shaft Torsion Testing Machine is designed for static torsion testing of automotive half shafts and other drivetrain components. It accurately measures torque and torsion angle to evaluate yield torque, maximum torque, failure torque, torsional strength, and torsion angle.

The system can generate torque-angle, torque-time, and angle-time curves, and supports automatic test data recording and report printing. Different torque capacities and fixtures can be configured according to the half shaft size and test requirements.

Application

The Automotive Half Shaft Torsion Testing Machine is mainly used for:

(1) Static torsion testing of automotive half shafts

(2) Yield torque and maximum torque determination

(3) Failure torque and torsional strength evaluation

(4) Torque-angle characteristic analysis

(5) R&D and quality inspection of automotive drivetrain components

Typical test samples include automotive drive shafts, half shafts, axle shafts, and other torque-transmitting components.

Parameters

Features

(1) Accurate Torque Measurement

High-precision torque measurement system provides reliable torque data throughout the test.

(2) Multiple Test Results

The system can determine yield torque, maximum torque, failure torque, torsional strength, and torsion angle according to the test procedure.

(3) Real-Time Test Curves

Torque-angle, torque-time, and angle-time curves can be displayed during testing.

(4) Bidirectional Loading

Supports clockwise and counterclockwise torque loading for different test requirements.

(5) Wide Torque Range

Multiple configurations from 100 Nm to 10,000 Nm are available for different half shaft specifications.

(6) Customizable Fixtures

Fixtures can be designed according to half shaft dimensions and connection structures.

(7) Test Data Management

Test results can be recorded, stored, analyzed, and printed as test reports.
