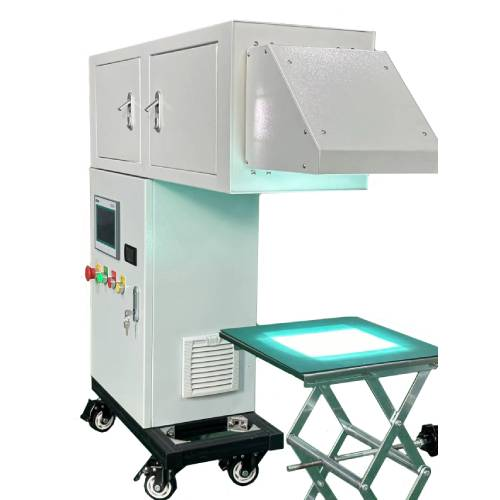

Solar Simulator and Test Bench

Photovoltaic Array Simulators ： Solar Array Simulator

The Solar Simulator and Test Bench is a high-precision laboratory device designed to simulate natural sunlight for testing solar products such as solar cells, photovoltaic modules, and light-sensitive materials. You can use it to replicate solar intensity, spectral distribution, and illumination under various environmental conditions, including different latitudes, seasons, and weather. Its high uniformity, stability, and adjustable irradiance make it ideal for R&D, production, and quality control in the solar industry, providing accurate and reproducible data.

Applications

• Photovoltaic Module and Solar Cell Testing: Evaluate module performance under simulated sunlight, including power output, efficiency, and degradation testing.

• Material Light Exposure and Photostimulation: Test the aging, stability, and optical properties of coatings, plastics, and other solar-sensitive materials.

• Plant Growth Research: Simulate sunlight conditions for indoor plant growth studies, including seasonal and latitudinal variations.

• Photochemistry Experiments: Provide stable illumination for chemical reactions requiring precise light intensity and spectrum.

• Environmental and Space Simulation: Reproduce solar conditions for satellite components, sensors, and thermal control systems.

Standards

(1) IEC 60904-9 – Photovoltaic Devices: Requirements for Solar Simulators

(2) ASTM E927 – Laboratory Simulation of Solar Radiation

(3) IEC 60904-3 – Measurement of Photovoltaic Current-Voltage Characteristics

(4) ISO 9060 – Solar Irradiance Measurement Standards

(5) ASTM G173 – Reference Solar Spectra for Testing

Features

• High-Precision Solar Simulation: Accurate reproduction of AM1.5G solar spectrum and intensity.

• Uniform Illumination: Spot uniformity ≤±2%, ensuring reliable measurements.

• Adjustable Light Parameters: You can control intensity, focal length, and reflector angles.

• Versatile Testing Applications: Suitable for photovoltaic, material, biochemical, and plant studies.

• Compact and Stable Design: Easy integration into labs with consistent performance.

Technical Parameters

Accessoriess

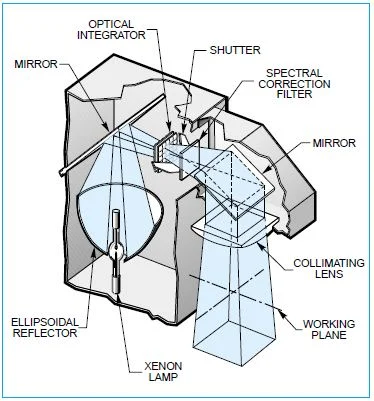

(1) Xenon lamp light source module

(2) Reflectors and focusing lenses

(3) Cooling system for stable lamp operation

(4) Optical alignment components

(5) Control unit for irradiance, spectral, and timing adjustments

(6) Data acquisition interface

Test Procedures

1. Position the solar cell, module, or test material on the simulator platform.

2. Turn on the control system and select the desired irradiation area.

3. Adjust irradiance to the required level (2–9 W/m²).

4. Verify spectral calibration and uniformity using built-in sensors.

5. Conduct the experiment and record performance or material response data.

6. After testing, allow lamps to cool down before powering off the simulator.

7. Save data and prepare the sample for analysis or next test cycle.

Conclusion

The Solar Simulator and Test Bench provides accurate, stable, and uniform solar radiation for a wide range of laboratory applications. You can use it for photovoltaic testing, material aging studies, plant growth simulation, and photochemistry research. Its compact design, adjustable irradiance, and reliable output make it an essential tool for research, development, and quality control in the solar industry.

FAQ

1. What is the spectral range of this solar simulator?

The simulator provides 300–1700 nm spectral coverage, closely matching natural sunlight (AM1.5G, Grade A).

2. How uniform is the illumination across the test area?

Spot uniformity is ≤±2%, ensuring consistent results across the irradiated surface.

3. Can the irradiance be adjusted?

Yes, you can adjust irradiance from 2 W/m² to 9 W/m² within the effective spot area.

4. What is the lifespan of the xenon lamp?

The xenon lamp has a typical lifespan of over 1000 hours, with a warranty covering 800 hours.

5. Can this simulator be used for plant growth research?

Yes, it simulates sunlight under varying seasonal and latitudinal conditions for controlled plant studies.

6. How do I maintain spectral accuracy over time?

Regularly clean lenses and reflectors, check spectral sensors, and replace lamps as their output decreases.

7. Can it simulate different weather and geographic conditions?

Yes, by adjusting light intensity, spectral distribution, and angles, you can replicate solar conditions from various latitudes and seasons.
