Drive Shaft Torsion Testing Machine | Shaft Torsion Fatigue Tester

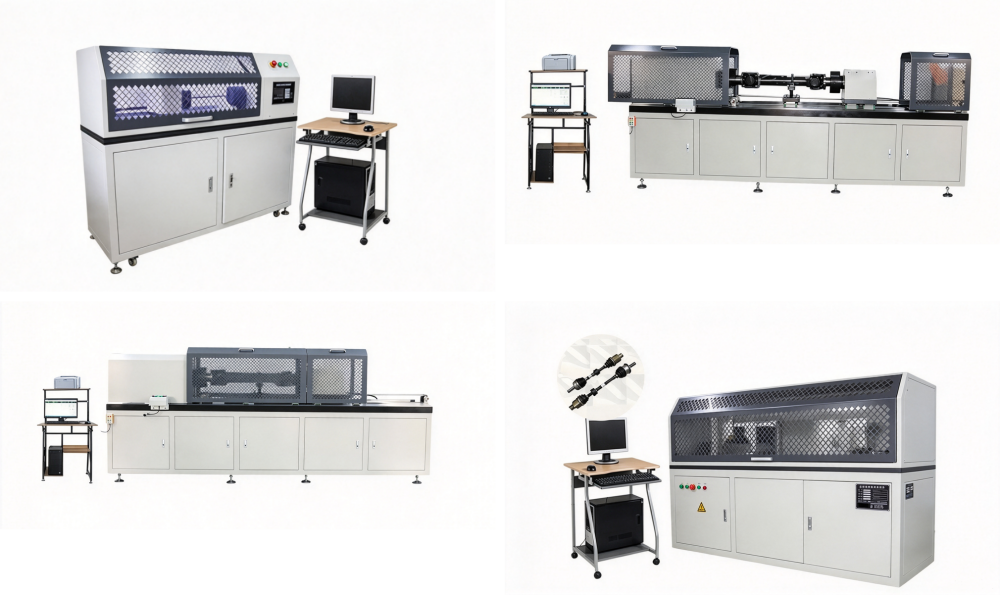

The Drive Shaft Torsion Testing Machine is primarily designed for conducting torsion tests on various shaft-type components, including drive shafts for automobiles, heavy-duty trucks, agricultural machinery, and tractors; as well as differentials, half-shafts, input/output shafts, flexible shafts, rigid shafts, and auger shafts for electric vehicles. The device allows for the pre-setting of a specific torsion angle; it automatically stops once this angle is reached, while simultaneously recording the torque and torsion angle of the workpiece. All data is displayed on an LCD screen. The machine is characterized by its simple operation, ease of use, stable performance, and long service life. It is primarily intended for use in the mechanics laboratories of research institutions, universities, and industrial enterprises to evaluate the torsional properties of materials.

Applications:

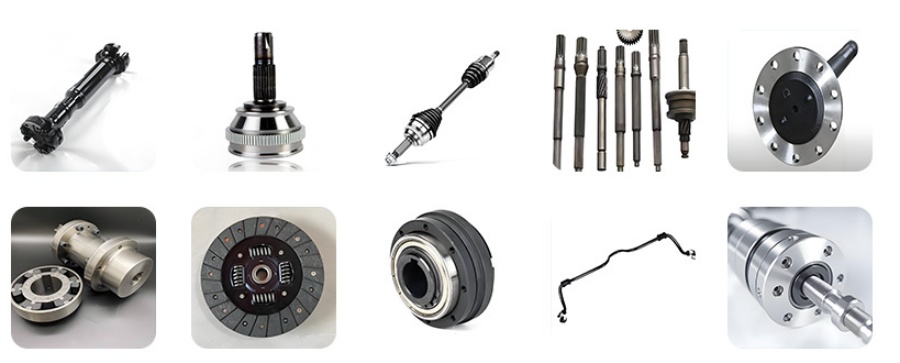

Automotive control cables (such as those for throttles, gear shifters, or handbrakes), flexible shafts for agricultural machinery, wire-wound flexible shafts, remote-control flexible shafts, small-scale flexible drive shafts, cable-type flexible shafts, solid shafts, hollow shafts, auger shafts, drive shafts, splined shafts, motor shafts, gear shafts, worm shafts, and long conveyor shafts.

Standards:

ISO 18338 Metallic materials - Torsion test at ambient temperature

ASTM E143 Standard Test Method for Shear Modulus at Room Temperature

GB/T 10128 Metallic materials—Torsion test at ambient temperature

Parameters:

This Tesing Machine is used for torsional fatigue and static strength tests of drive shafts. The tests are carried out under variable loads and adjustable test setups, in order to achieve a required number of cycles.
