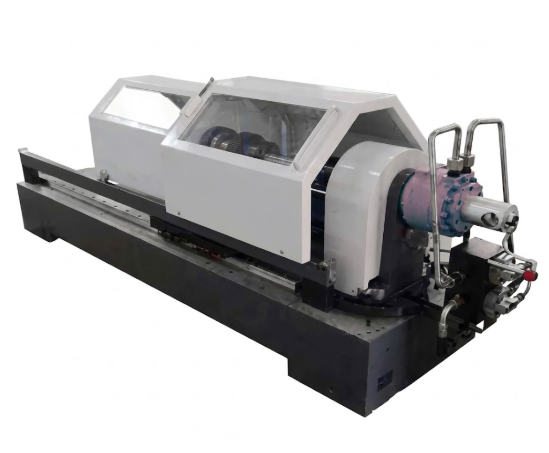

Bearing Torsion Testing Machine

The Bearing Torsion Testing Machine is designed to evaluate the torsional performance of bearings and related mechanical components. The machine applies controlled torque to the test specimen and measures torque, torsion angle, speed, and other test data. It can be used for torque, peak torque, torsion angle, cycle, and failure testing, providing test curves and data for product development and quality control.

Application

The Bearing Torsion Testing Machine is suitable for:

(1) Bearing and bearing assembly torsion testing

(2) Automotive and mechanical components

(3) Shafts, pulleys and other transmission components

(4) Torque and torsion angle measurement

(5) Cycle, constant-torque and destructive testing

(6) Product development and quality inspection

Standards

(1) GB/T 2611 — General requirements for testing machines

The applicable testing standard can be configured according to the bearing type, test method, specimen structure, and customer requirements.

Parameters

Features

(1) Accurate Torque Measurement – Measures applied torque and peak torque during testing.

(2) Torsion Angle Measurement – Provides high-resolution measurement for torque-angle analysis.

(3) Multiple Test Modes – Supports constant-torque, cycle, destructive and qualification testing.

(4) Flexible Fixtures – Three-jaw chuck and bidirectional center-support fixtures are available for different specimen configurations.

(5) Data Acquisition – Collects torque, angle, speed and time data and generates test curves.

(6) Customizable Configuration – Torque capacity, test stroke and fixtures can be customized according to the specimen and test requirements.

(7) Overload Protection – Helps protect the testing machine during excessive loading.
