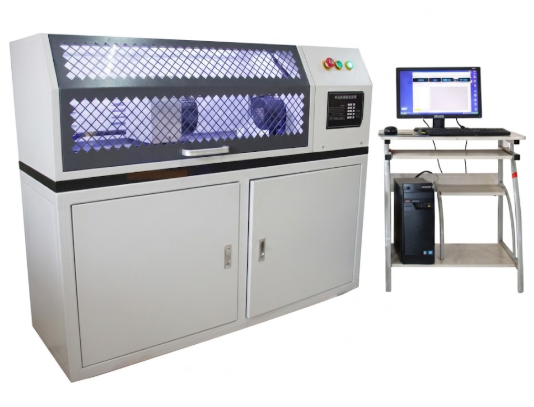

Flexible Shaft Torsion Testing Machine

The Flexible Shaft Torsion Testing Machine is designed for static torsion testing of flexible shafts and other torque-transmitting components. It adopts a horizontal structure with a digital AC servo drive and closed-loop control system, providing smooth and stable torque loading without significant impact.

The machine accurately measures torque and torsion angle and can record test curves and data for evaluating the torsional performance of flexible shafts.

Application

The Flexible Shaft Torsion Testing Machine is mainly used for:

(1) Static torsion testing of flexible shafts

(2) Torsional strength evaluation

(3) Torque-angle characteristic testing

(4) Quality inspection of flexible shaft products

(5) R&D and performance verification of torque-transmitting components

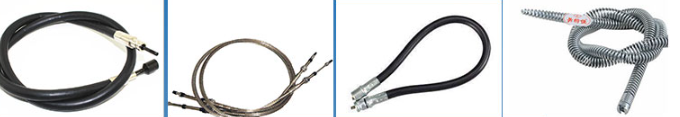

Typical test samples include flexible shafts, control cables with torque-transmitting structures, drive shafts, and other flexible torque-transmitting components.

Standards

(1) GB/T 2611 — General technical requirements for testing machines

(2) Applicable product or industry standards can be selected according to the specific flexible shaft and test requirements.

Note: The applicable testing standard should be confirmed according to the flexible shaft type, structure, material, and customer's technical requirements.

Parameters

Parameter	Specification
Maximum Test Torque	10 / 20 / 50 / 100 / 200 / 300 / 500 Nm
Test Stroke	300 mm
Testing Machine Class	Class 0.5
Torque Measurement Range	1%–100% FS
Minimum Torque Reading	0.01 Nm / 0.1 Nm
Angle Resolution	0.01°
Maximum Torsion Angle	0–Unlimited
Test Speed	0.1–720°/min, customizable
Angle Indication Error	< ±0.5%
Angle Repeatability Error	< 0.5%
Torque Indication Error	< ±0.5%
Torque Repeatability Error	< 0.5%
Speed Accuracy	Better than ±1% of indicated value
Loading Direction	Clockwise and counterclockwise
Test Fixture	Standard fixture
Power Supply	AC 220 V, 50 Hz
Appearance	Complies with GB/T 2611
Applicable Samples	Flexible shafts and related torque-transmitting components

Features

(1) Stable Servo Loading

The digital AC servo system provides smooth and controlled torque loading.

(2) Closed-Loop Control

Closed-loop control improves loading accuracy and test repeatability.

(3) Accurate Torque and Angle Measurement

The system continuously measures torque and torsion angle during testing.

(4) Horizontal Test Structure

The horizontal configuration facilitates installation and positioning of flexible shaft specimens.

(5) Bidirectional Torsion Testing

Supports clockwise and counterclockwise torque loading.

(6) Multiple Torque Capacities

Available torque capacities from 10 Nm to 500 Nm for different flexible shaft specifications.

(7) Digital Data Acquisition

Test data and curves can be collected and processed through the computer-based control system.
