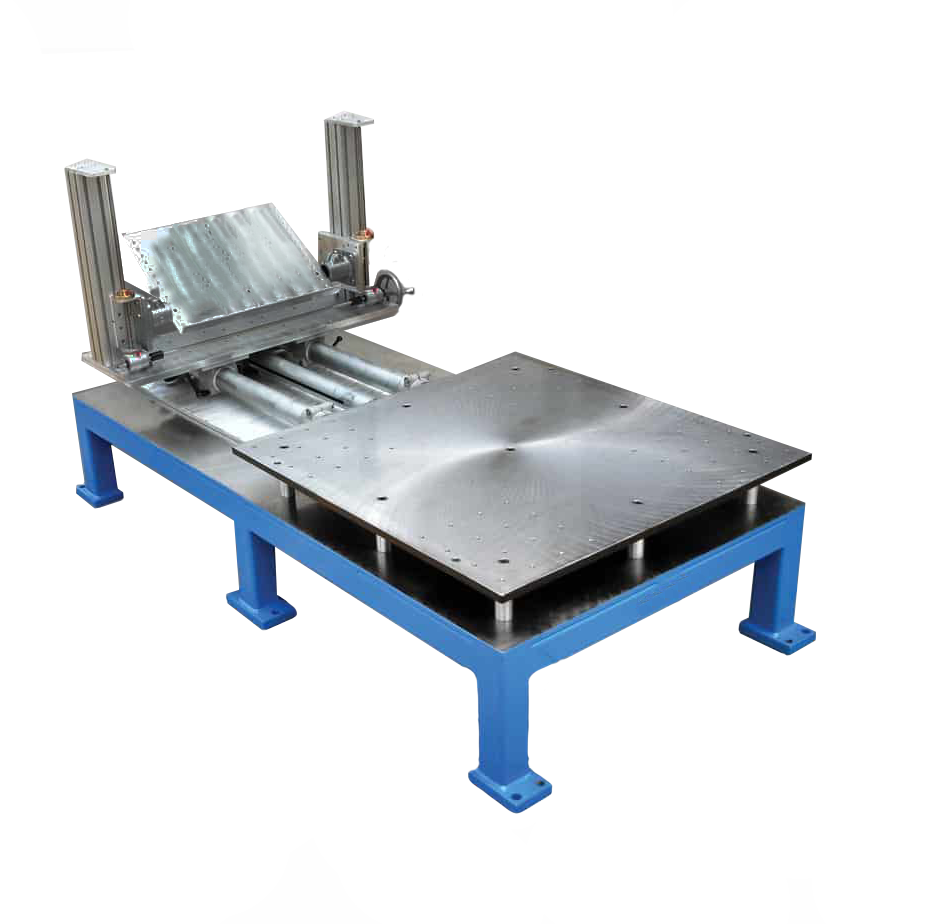

H-Point Seating Measurement Table

1. Function and Application

The H-Point Seating Measurement Table is designed to accurately determine the hip point (H-Point) for automotive seating. It is a critical tool for evaluating seat positioning, ergonomics, and occupant comfort during vehicle design and testing.

The table is suitable for all vehicle seat types, including front, second-row, and third-row seats, and ensures that seat fixtures are properly aligned for H-Point measurement in compliance with automotive standards.

2. Applicable Test Standards

Automotive seating design and ergonomics standards

H-Point measurement procedures as per SAE J826 or equivalent guidelines

3. Technical Specifications

4. Features and Advantages

Precision Measurement: Adjustable settings allow for exact H-Point placement verification.

Versatile Compatibility: Can accommodate front, second-row, and third-row seating.

Secure Mounting: Tapped mounting plate ensures seat fixtures are firmly secured in place.

Expandable Design: Optional extension table increases versatility for multi-row seating evaluations.

Durable Construction: Built from high-quality steel for long-term stability and reliability.
