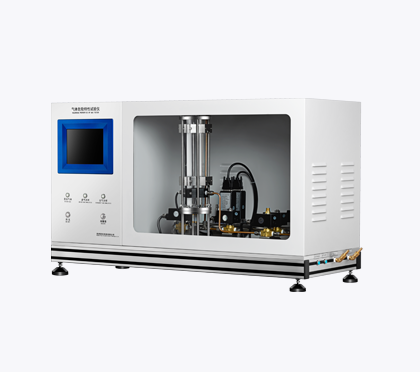

Gas Hazard Characteristics Tester

The Gas Hazard Characteristics Tester is a device used to determine the flammable concentration range of gases in air. It evaluates how easily a gas or a gas mixture can ignite under controlled conditions, measuring combustion limits, flame propagation, and burning rates.

Product Description

This tester is used to determine the flammable concentration range of gases in air, suitable for most pure combustible gases as well as mixtures composed of several pure combustible gases in specified proportions.

Scope of Application and Standards

The Gas Hazard Characteristics Tester is designed to determine the flammable concentration range of gases in air, applicable to most pure combustible gases and gas mixtures prepared in specific proportions.

Complies with GB 19521.3-2004: Safety Regulations for Testing Hazardous Properties of Flammable Gases.

Technical Parameters

Functional Features

Embedded processor with Windows CE operating system.

8-inch LCD touchscreen for real-time display of test status.

High-resolution photosensitive sensor with fast response time, capturing flash or explosion events and outputting detection signals.

Dual-channel digital flow meter for highly accurate gas flow control, ensuring precise mixing of test gas and air.

Equipped with an online gas sampling channel for quantitative analysis via GC/MS or other instruments.

High-precision photosensitive sensor monitors light intensity inside the reaction tube in real time, automatically determining the flammability of the gas at that concentration and providing combustion rate data.

Automatic determination of combustion performance during testing, with control over gas concentration ramping.

Reaction chamber constructed with double-layer tempered glass for operator safety.

Fully automated testing process without manual intervention, supporting parameter setting, data storage, and report generation.
