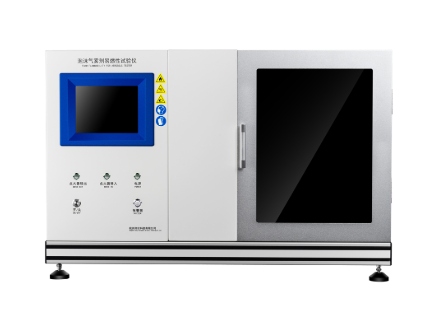

Foam Aerosol Flammability Tester

The Foam Aerosol Flammability Tester is a device used to assess the flammability of foam aerosols. It evaluates how easily aerosolized foam products can ignite and sustain combustion under controlled test conditions, ensuring compliance with safety and regulatory standards.

Product Description

This tester is used to evaluate the flammability of aerosols discharged as foam, gel, or paste.

Scope of Application and Standards

The Foam Aerosol Flammability Tester is designed to assess the flammability of aerosols discharged as foam, gel, or paste.

Complies with domestic standards:

Recommendations on the Transport of Dangerous Goods, Manual of Tests and Criteria, Section 31.6: Flammability Test of Aerosol Foam

GB/T 21632-2008: Methods for Testing Flammability of Hazardous Aerosol Foam Products

Technical Parameters

Functional Features

Embedded processor with Windows CE operating system.

8-inch LCD touchscreen for real-time test status display.

High-sensitivity photoelectric detection technology to measure flame duration and maximum flame height.

Layered structure design to eliminate background light interference, suitable for evaluating flame height of irregular shapes.

Automatic flame height determination ensures accurate data.

Real-time animated display of the test process.

Equipped with high-precision temperature and humidity module for real-time monitoring of test environment conditions, ensuring stable results.

Fully automated testing process without manual intervention, supporting parameter setting, data storage, and report viewing functions.

Accessories

(1)Sample Holders: Secure foam specimens during testing.

(2)Ignition Source: Standardized burner or spark system for flame exposure.

(3)Protective Enclosure: Safety chamber to contain flames and smoke.

(4)Control Unit: Adjusts test parameters such as exposure time and ignition intensity.

Test Procedures

Sample Preparation: Cut foam samples to standard dimensions and condition per test standards.

Setup: Place samples in the holder within the protective enclosure.

Flammability Test: Expose foam to the ignition source for a specified duration.

Observation & Data Recording: Measure flame spread, ignition time, and residue; document results for evaluation.

Maintenance Information

Daily Cleaning: Remove foam residues, soot, and dust from holders and chamber.

Inspection: Check ignition source, safety enclosure, and wiring for damage or wear.

Calibration: Ensure timers and ignition system function accurately.

Storage: Keep in a clean, dry, ventilated area; avoid moisture or corrosive environments.

FAQ

1. What is the purpose of this tester?

It evaluates the flammability and fire behavior of foam aerosols to ensure safety compliance and material performance.

2. Which materials can be tested?

Applicable to foam products used in furniture, automotive, packaging, and insulation industries.

3. How is a flammability test performed?

Foam samples are exposed to a controlled ignition source within a safety chamber, and flame spread, ignition time, and residue are measured.

4. What standards does this tester comply with?

Supports international and industry standards for foam flammability testing, including ISO, ASTM, and EN regulations.

5. How should the tester be maintained?

Clean residue after each test, inspect ignition and safety systems, calibrate timers and controls regularly, and store in a dry, ventilated area.
