IEC 63180 Infrared and Microwave Sensing Test Dummy

The IEC 63180 Infrared and Microwave Sensing Performance Test Dummy is a comprehensive testing system designed for standardized and repeatable evaluation of infrared (PIR) and microwave radar sensing products. By simulating human body dimensions, movement behaviors, and surface thermal radiation characteristics, the system quantitatively assesses detection distance, angular coverage, and trigger stability in controlled environments. This system is ideal for laboratory functional verification, performance comparison, product development, and production consistency testing.

Application

The test dummy is applicable to a wide range of sensing products and scenarios, reflecting mainstream testing requirements and industry-standard protocols:

Infrared motion-sensing lamps (PIR lamps)

Microwave radar motion-sensing lamps

Infrared and microwave hybrid sensing devices

Indoor and outdoor intelligent lighting sensors

Smart security human detection modules

Building automation sensing controllers

Smart home motion-sensing switches and modules

R&D stage performance verification of sensing products

Production consistency testing and type approval

Standards

The system can be used to verify and evaluate compliance with the following standards:

GB/T 17743 – Electromagnetic compatibility of electrical lighting equipment

GB/T 24824 – General technical requirements for infrared detectors (relevant clauses)

IEC 63180 – Performance testing methods for infrared and microwave sensing devices

IEC 60598 – Luminaires; supplementary verification of sensing functions

IEC 62386 – Intelligent control systems; functional verification reference

Product Specifications

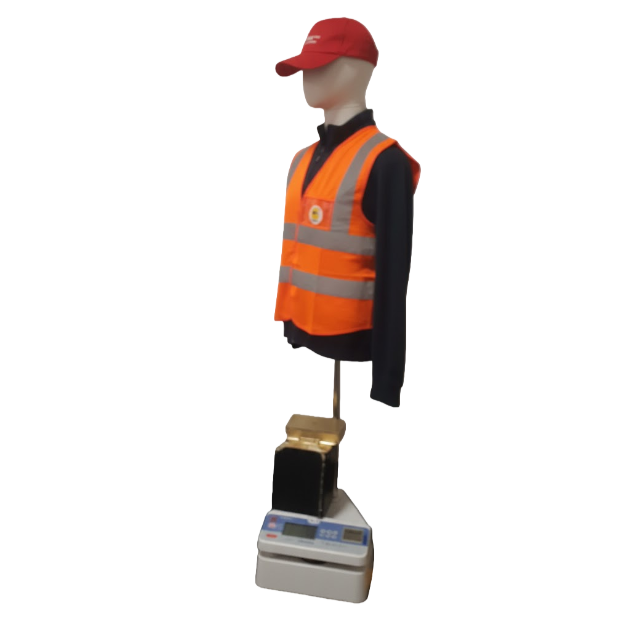

Simulated Human Robot

Elevation & Rotation Platform

Product Features

IEC 63180 Standardized Test Configuration: Radial and circumferential measurement points enable comprehensive detection coverage mapping.

Repeatable Human Motion Simulation: Robot movement paths, speed, and pause times are precisely controlled to eliminate human variability.

Realistic Human Thermal Radiation: Head and chest heating simulates human infrared radiation characteristics for PIR testing.

Dual-Mode Infrared & Microwave Platform: Structural design minimizes metal interference while accommodating both IR and microwave measurements.

Modular System Architecture: Robot, elevation/rotation platform, and software can operate independently or in combination, facilitating upgrades and expansion.

Accessories & Consumables

Testing Principle

The system simulates controlled human movement within the detection zone of sensing products, providing stable and consistent stimuli under different distances, angles, and heights.

The robot moves along pre-set paths while the elevation/rotation platform adjusts the product’s installation height and orientation.

When a sensing product is triggered, the software automatically records the spatial coordinates of the event.

This produces complete sensing performance distribution data for quantitative evaluation.

Operation Instructions

Ensure the robot’s battery is fully charged for the complete test cycle.

Preheat the head and chest heating system to the target temperature and maintain stability.

For microwave testing, avoid large metal objects that could cause reflections.

Do not enter the test area during elevation or rotation operations.

Select the appropriate test mode (Mode 1 or Mode 2) according to the sensing product type.

Experimental Procedures

Mode 1 – Linear Motion Test

Place the robot at the central origin (5 m centerline).

Move the robot to one end of the centerline.

Move at 1 m/s along a 5 m straight line to the opposite end.

Return to the origin or repeat the cycle as programmed.

Software records trigger points along the line.

Mode 2 – Angular Coverage Test

Move the robot from the central origin to the ±45° start point.

Move 3 m along the designated direction and pause.

Rotate 45° to reach the next test line start point.

Pause time adjustable between 5–60 s.

Repeat the cycle while recording trigger angles and distances.

Linked Test Procedure

Elevate the platform to the specified height.

Rotate the platform to the designated angle.

Software triggers robot to execute Mode 1 or Mode 2.

Automatically record all trigger points.

Upon completion, generate the test report and export data.

FAQ

1. What is this product?

The IEC 63180 Infrared and Microwave Sensing Dummy is a robotic test system designed to simulate human body size, movement, and surface thermal radiation. It provides standardized and repeatable evaluation of infrared (PIR) and microwave motion-sensing devices under controlled laboratory conditions.

2. What is this product used for?

This dummy is used to test the detection distance, angular coverage, and trigger stability of sensing products, including PIR lamps, microwave radar lamps, hybrid IR/microwave devices, and smart home or building automation motion sensors. It ensures accurate functional verification, production consistency, and R&D performance evaluation.

3. Why is this product important?

It eliminates human variability and provides reproducible test conditions. The robot simulates real human movement and thermal emission, enabling precise, quantitative performance assessment of motion-sensing products, which is critical for product quality assurance, compliance with IEC 63180, and market reliability.

4. What industries is this product suitable for?

Smart lighting and sensor manufacturers

Smart home automation and IoT device developers

Building automation and security systems

Laboratory testing and certification agencies

Research and development institutes

5. What types of this product are available?

Mobile Robot Only: Omni-directional movement with head/chest heating for PIR testing.

Elevation & Rotation Platform: Adjustable height (1–5 m) and rotation (0–360°) for ceiling or wall-mounted product testing.

Integrated System: Robot + Elevation/Rotation Platform + Control Software for full-range, repeatable, and programmable testing.
