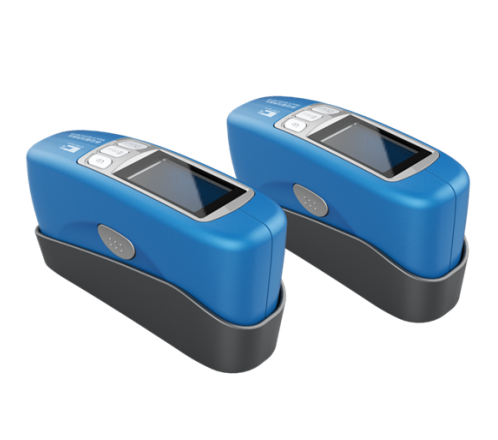

Glossmeter CS-380 Measuring surface gloss, 20°, 60°, 85° geometries, Surface appearance (EN 438-2.4)
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com
The Glossmeter CS-380 is designed for precise measurement of surface gloss on materials such as coatings, plastics, printing inks, metals, ceramics, building materials, leather, and paints. It delivers high stability and repeatability, using advanced Japanese sensors and high-end American chips. The instrument meets JJG 696 calibration requirements and is recognized by metrology institutions.
(1) Quality control and surface finish evaluation in paint, coatings, and inks
(2) Surface gloss measurement in plastics, metals, ceramics, building materials, and leather
(3) Industrial production monitoring of decorative and functional surfaces
(4) Laboratory testing for R&D of coatings and surface materials
(1) DIN 67530 — Gloss measurement of high-gloss surfaces
(2) ISO 2813 — Paints and varnishes — Determination of gloss value
(3) ASTM D523 — Standard test method for specular gloss
(4) JIS Z8741 — Japanese Industrial Standard for gloss measurement
(5) BS 3900 Part D5 — British Standard for surface gloss
(6) JJG 696 — Chinese calibration standard for glossmeters
(7) EN 438-2.4 — Surface appearance measurement for high-pressure decorative laminates
(1) High-precision sensors and advanced processing chips for accurate gloss measurement
(2) Dual optical path technology with stability of 0.2 GU
(3) Ergonomic design with smooth, comfortable grip
(4) Large-capacity 3000 mAh rechargeable lithium battery, supporting up to 54,300 continuous measurements
(5) Fast measurement: less than 1 second per reading
(6) Two measurement modes: Simple mode and Statistical mode
(7) Multiple gloss measurement angles: 20°, 60°, 85°
(8) Data storage: up to 100 standard references and 10,000 sample measurements
(9) USB interface and optional Bluetooth connectivity
(10) Compliant with JJG 696-2002 first-class glossmeter requirements
| Parameter | Specification |
|---|---|
| Model | CS-380 |
| Measurement Angles | 20°, 60°, 85° |
| Measurement Spot Size (mm) | 20°: 10×10; 60°: 9×15; 85°: 5×38 |
| Measurement Range | 20°: 0–2000 GU; 60°: 0–1000 GU; 85°: 0–160 GU |
| Resolution | 0–100 GU: 0.1 GU; >100 GU: 1 GU |
| Repeatability | 0–100 GU: 0.2 GU; 100–2000 GU: 0.2% GU |
| Accuracy | Meets JJG 696-2002 first-class glossmeter |
| Measurement Time | <1 second |
| Data Storage | 100 standard references, 10,000 samples |
| Dimensions (mm) | 165×51×77 (L×W×H) |
| Weight | ~400 g |
| Language | Simplified Chinese, English |
| Battery | 3000 mAh rechargeable lithium battery |
| Interface | USB, Bluetooth (optional) |
| Operating Temperature | 0–40 °C |
| Humidity | <85%, non-condensing |
(1) 5 V/2 A charger
(2) USB data cable
(3) User manual and software CD
(4) Calibration standard plate
(5) National metrology certification
