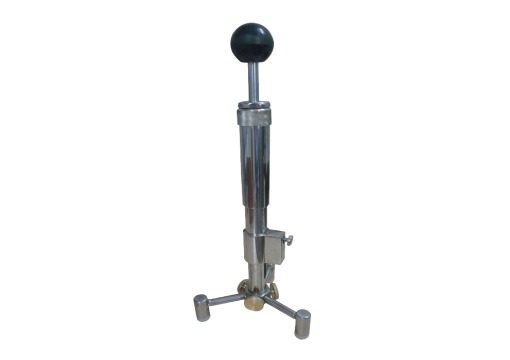

Ball Impact Tester (Large) JAY-7150
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com
Ball Impact Tester (Large) JAY-7150, also known as the Enamel Impact Tester or Wagner Impact Tester, is designed for evaluating the impact resistance of thermosetting resin impregnated paper and high-pressure decorative laminates (HPL). It offers mechanical, adjustable impact loading and is suitable for both laboratory and on-site quality control.
• Impact resistance evaluation for thermosetting resin impregnated paper
• Quality control testing of high-pressure decorative laminates (HPL)
• On-site inspection in workshops, production lines, and manufacturing plants
• Material durability assessment for thin decorative boards (<2 mm)
(1) GB/T 7911-2013, Clause 7.3.8, Figure 6 & Figure 7
(2) ISO 4532 — Vitreous and porcelain enamelled articles — Determination of impact resistance
(3) DIN ISO 4532 (DIN 51 155) — Impact test for enamelled articles
(4) ISO 4586-2 — High-pressure decorative laminates (HPL) — Tests for resistance to impact
(5) ISO 438-2 — Decorative laminates — Mechanical performance
(6) EN 438-2.21 — Impact resistance (large ball method)
| Item | Specification |
|---|---|
| Impact energy | 0.5–2.5 J |
| Spring force range | 0–90 N, continuously adjustable |
| Minimum scale division | 2 N |
| Steel ball diameter | Φ5 mm |
| Spring compression length | 100 mm |
| Support fixture | Circular support frame |
| Applicable sample thickness | < 2 mm |
| Rating after 5 impacts | Level 1 ≥12 N, Level 2 ≥15 N, Level 3 ≥20 N, Level 4 ≥25 N |
