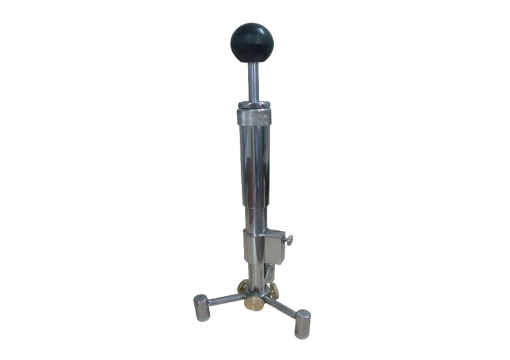

Ball impact tester (small) JAY-7151

The Ball Impact Tester (Small), model JAY-7151, also known as the Enamel Impact Tester or Wagner Impact Tester, is used for evaluating the impact resistance of thermosetting resin impregnated paper and high-pressure decorative laminates (HPL). The fully mechanical, portable design enables convenient testing in laboratories, workshops, and production sites.

Applications

(1) Impact resistance testing of thermosetting resin impregnated paper.

(2) Impact resistance testing of high-pressure decorative laminates (HPL).

(3) Suitable for factory production management and on-site inspection.

Standards

(1) GB/T 7911-2013 — Decorative high-pressure laminates (HPL) – Specifications and test methods

(2) ISO 4532 — Vitreous and porcelain enamels – Determination of resistance to abrasion

(3) DIN ISO 4532 (DIN 51 155) — Vitreous enamels – Determination of resistance to abrasion

(4) ISO 4586-2 — High-pressure decorative laminates (HPL) – Test methods – Part 2: Determination of properties

(5) ISO 438-2 — Decorative laminate sheet materials – Test methods – Part 2: Determination of mechanical properties

(6) EN 438-2.20 — High-pressure decorative laminates (HPL) – Determination of impact resistance (spherical impact energy test)

Features

(1) Portable handheld mechanical impact tester suitable for lab or on-site evaluation.

(2) Adjustable force range from 0–90 N with minimum resolution of 2 N.

(3) Compression spring length of 100 mm for consistent force application.

(4) Capable of testing uneven surfaces and sample edges.

(5) Supplied with a circular support frame for sample positioning.
