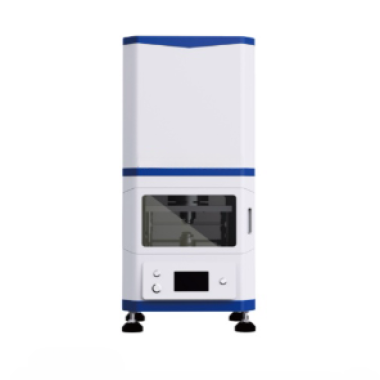

Battery Electrode Resistance Tester

Standard

ASTM B193: Standard Test Method for Resistivity of Electrical Conductor Materials

ISO 18516: Conductive Coatings – Measurement of Resistivity

IEC 62660-1: Secondary Lithium-Ion Cells – Part 1: Performance Testing

RoHS Compliance (Restriction of Hazardous Substances)

CE Certification (Conformité Européenne)

Product Advantages

Ultra-Sensitive Detection

0.1 μΩ Resolution: Measures resistivity as low as 1 μΩ·cm for advanced anode/cathode materials.

Four-Point Probe Technology: Eliminates contact resistance errors for pristine data.

Rapid Material Characterization

3-Second Testing Cycle: High-throughput screening for production lines.

Auto-Mapping Function: Generates 2D resistivity heatmaps of entire electrode sheets.

User-Centric Design

12.1” Capacitive Touchscreen: Multi-touch gestures for zoom/pan on live data curves.

Voice-Guided Operation: Step-by-step instructions in 8 languages (English, Korean, German, etc.).

Industrial Durability

Corrosion-Resistant Chassis: 316L stainless steel body with IP54 dust/water resistance.

Vibration-Dampening Feet: Stable operation in noisy factory environments.

Smart Connectivity

IoT-Ready: Seamless integration with MES/ERP systems via MQTT protocol.

AI-Powered Analytics: Predicts battery cycle life based on resistivity trends.

Product Features

Non-Destructive Testing (NDT): Preserves electrode integrity with <1 N contact force.

Temperature Compensation: Built-in Peltier module (-10°C to 60°C ±0.5°C accuracy).

Dynamic Range Switching: Auto-adjusts between μΩ and mΩ ranges during testing.

Laser-Assisted Alignment: Guides operator for perfect probe placement on 50x50mm samples.

Emergency Power-Off: Dual redundant safety circuits with E-stop button.

Accessories Included

Four-Point Probe Head:

Tungsten carbide tips (0.5mm spacing) with gold-plated connectors.

Quick-release lever for rapid probe replacement.

Software Suite:

License key for ResiMAP Pro (Windows/macOS/Linux).

1-year free access to cloud-based SPC (Statistical Process Control) tools.

Calibration & Safety:

NIST-traceable standard resistor (10 μΩ, 100 μΩ, 1 mΩ).

Insulated gloves (Class 00. 3 pairs).

Portability Kit:

Heavy-duty rolling case with TSA-approved locks.

Retractable handle and 8” all-terrain wheels.

Documentation:

Multilingual quick-start guide (printed + digital).

Compliance certificate portfolio (ASTM/ISO/CE).

Technical Parameters
