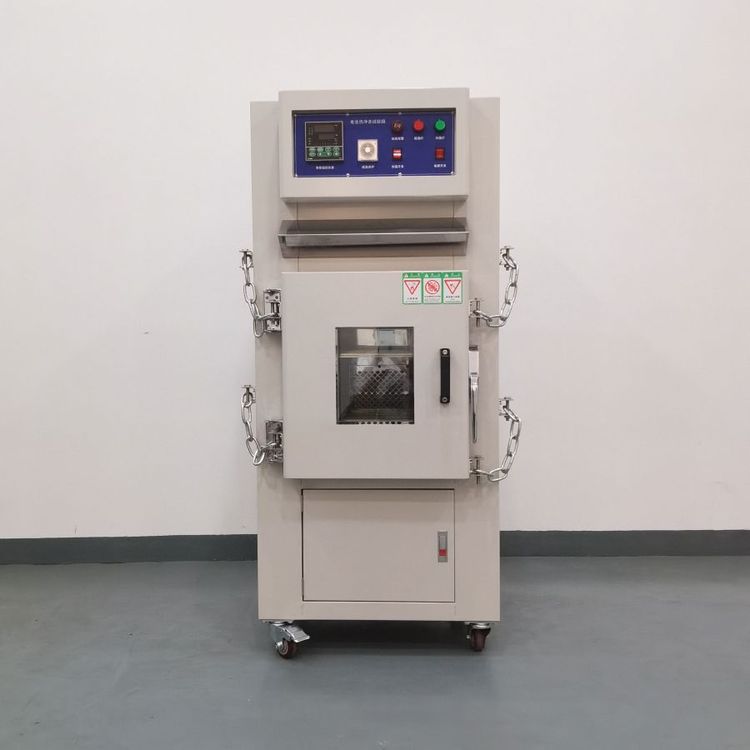

Battery short-circuit tester

Product introduction

　　The device is designed based on a variety of battery short-circuit test standards.

 According to the standard requirements, the short-circuit device must meet the

internal resistance range of 80 soil 20m, so as to obtain the maximum short-circuit

current required by the test. In addition, the circuit design of the short-circuit device

must also be able to withstand the impact of large current, so we choose industrial

grade DC electromagnetic contactors and all copper terminals and internal copper

plates to guide the flow, wide and thick copper plates effectively improve the heat

dissipation effect, make the high-current short-circuit device safer, effectively reduce

the loss of test equipment, and ensure the accuracy of the test data.

Meet the standard

　　GB/T31485-2015 "Safety requirements and test methods for power batteries for

electric vehicles"

　　GB/T31241-2022 "Safety requirements for Lithium-ion batteries and battery packs

for portable electronic products"

　　UN38.3 United Nations Manual of Tests and Standards for the Transport of

Dangerous Goods

　　IEC62133 "Safety requirements for batteries （groups） composed of cells and for

use in portable equipment"

　　UL1642:2012 "Lithium Battery Standard"

Technical parameter

　　Inner box size :400x400x400mm（width x depth x height）

　　Size :760x690x1720mm（width x Depth x height）

　　Temperature range :RT+10-150℃C

　　Temperature display accuracy :0.1°C

　　Temperature stability: 1.0*C

　　Temperature uniformity: 2 "C

　　Heating time :（5±2） "C/min

　　Inner box material :SUS304 stainless steel plate, thickness 1.2mm;

　　Outer box material: 1.5mm thick cold rolled steel plate paint treatment;

　　Observation window: 250x250mm tempered glass, with stainless steel mesh;

　　Lighting device: The machine is equipped with a light, which is convenient to

observe the state of the tested sample;

　　Door: single door open left, side of the door is equipped with explosion-proof

chain;

　　Test hole: There are 2 test holes with a diameter of 50mm on the right side of

the equipment, which is convenient to put the temperature, voltage, current and

other collection lines:

　　Insulation material: high efficiency compressed glass wool

　　Heat preservation device: no fuse switch, over temperature protection switch, fuse

　　Safety device: equipment equipped with overtemperature alarm;

　　Control formation: reach the set time to cut off the heating power supply;

　　Air supply circulation system: convection air supply circulation system

　　Control mode: touch screen control

　　Temperature collection range :RT-1000°C;

　　Temperature acquisition channel :1 channel;

　　Temperature acquisition accuracy: 1.5°C;

　　Voltage acquisition model :0-100V;

　　Voltage acquisition channel :1 channel;

　　Voltage accuracy: Earth 0.5%FS;

　　Current collection range :0-1000A;

　　Current acquisition channel :1 channel;

　　Current accuracy: soil 0.5%FS;

　　Acquisition frequency :10HZ

　　Internal resistance of device loop :80 20mΩ;

　　Port pressure port: The opening size is 200x200mm, located at the back of the box.

 When the sample explodes, the pressure relief port will pop open and remove the

pressure;

　　Device movement: there are four universal casters at the bottom of the device,

which can move freely;

　　Equipment weight :170Kg;

　　Power supply :AC220V;

　　Power :3KW.
