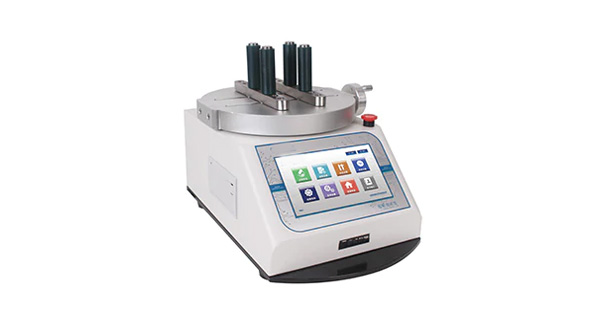

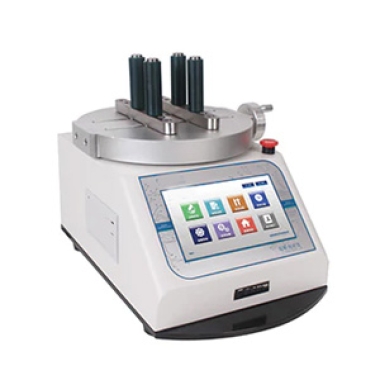

Manual Bottle Cap Torque Tester is designed to measure the open force and lock force of the caps of bottles, spout bags and flexible tube packages. The force can influence the transportation and consumption of products greatly and very important for the online and offline production.
Basic Applications：
Bottle Packages
Application and removal torque test of the bottle caps for bottled packages for food, pharmaceuticals, e.g. beverage or tablet bottles
Flexible Tube Packages
Application and removal torque test of flexible tube packages for food, pharmaceuticals and cosmetics, e.g. eye-drop, hand cream and shoe polish
Extended Applications：
Screws
Application and removal torque test of the screws
Vacuum Flasks and Vacuum Cups
Application and removal torque test of the caps of vacuum flasks and vacuum cups
ASTM D2063: Standard Test Method for Seal Strength of Flexible Barrier Materials
ASTM D3198: Standard Test Method for Blocking Load of Flexible Thermoplastic Films and Sheeting
ASTM D3474: Standard Specification for Pressure-Sensitive Tape for Packaging, Box Sealing
BB/T 0025: Biaxially Oriented Polypropylene Pearlescent Film
BB/T 0034: Biaxially Oriented Polypropylene Film for Packaging
GB/T 17876: Packaging Containers - Plastic Child-Resistant Caps and Closures
| Items | Specifications |
| Load Cell Capacity | 20 Nm (Standard) |
| 5 Nm, 40 Nm (Optional) | |
| Accuracy | 0.5% FS |
| Resolution | 0.001 Nm |
| Clamp Range | Φ5 mm ~ Φ190 mm (Diameter) |
| Instrument Dimension | 310 mm (W) x 390 mm (D) x 320 mm (H) |
| Power Supply | AC 100-240V 50/60Hz (can be changed to local requirement) |
| Net Weight | 17 Kg |
7-inch touch screen control, full display dynamic renderings
Dual measurement mode of locking force and opening force
Multiple test units, switchable
Standard test unit for test results, without manual conversion
Test times can be set, data deletion, statistical functions
Automatic zeroing, error alert and overload protection for safe test operation
Test parameter power-off memory, report micro-print output
Equipped with RS232 port and micro printer port which is convenient to the data transmission and PC connection
The network transmission interface supports local area network data centralized management and Internet information transmission
Standard Configurations: Instrument, Micro Printer
Optional Parts: Professional Software, 485 Communication Cable
