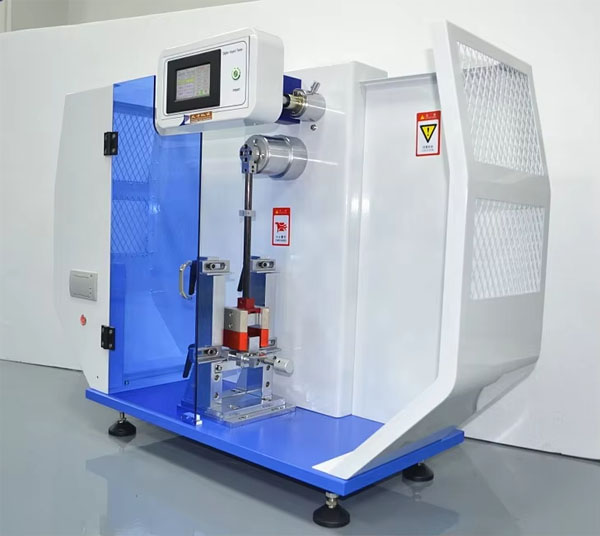

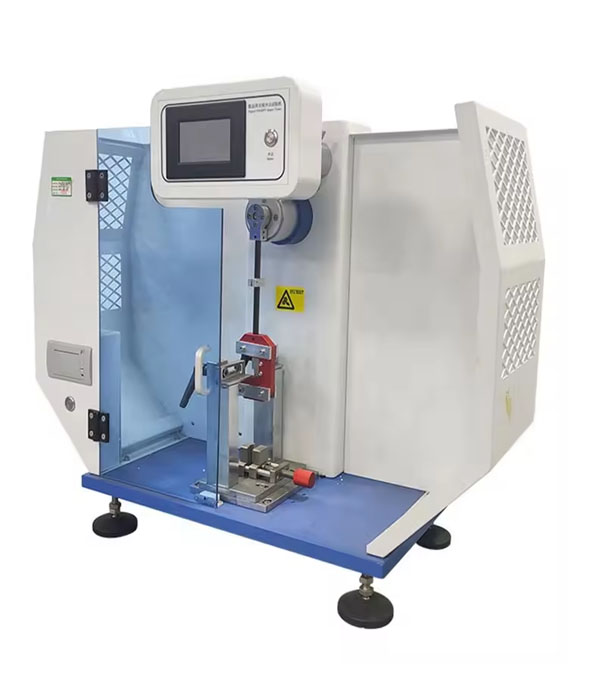

IZOD & Charpy Impact Tester

Impact strength is often used to evaluate the ability of materials to resist impact or to judge the brittleness or toughness of materials, which is an important performance index of plastic materials in engineering applications. It reflects the ability of different materials to resist damage caused by high-speed impact. When measuring the impact strength of plastics, the commonly used test methods include the IZOD impact method and the Charpy impact method. There are two types of notched impact and unnotched impact in these two methods. What we will introduce here is the Charpy impact tester.

Charpy Impact Tester is intended to determine the Charpy impact strength of hard plastics, fiber reinforced composites, glass fiber reinforced plastics, ceramics, asbestos and other non-metallic materials under specified conditions. It is capable of mastering the behaviour of stipulated kinds of test pieces under the impact conditions and estimating the brittleness or toughness of test pieces within the limitations inherent in the test conditions. The determination of comparative data from similar kinds of material is available via this equipment. It is an ideal testing instrument for manufacturing industries, research and development institutions, colleges and universities, and quality inspection organizations.

Before the test, a simple calibration of the instrument without placing the specimen is conducted for the resistance of friction and wind. The hammer is released electronically by a solenoid during the test under the operator’s control. Different impact velocities of 2.9 m/s and 3.8 m/s are available by choosing different types of pendulum ranging from 1 J to 50 J. A PLC controller coupled with a touch screen facilitates the parameter setting and data monitoring, including impact energy, impact velocity and sample size, etc.

Test standard:

ISO179-2000 “plastics – determination of impact strength of the simply supported beam with hard material,

GB/T 21189 < plastic beam and cantilever beam and tensile impact test with a pendulum impact testing machine test >

GB/T1043-2008 “the hard plastic beam impact test method” JB/T8762-1998 plastic beam impact testing machine, GB/T 18743-18743 “with thermoplastic fluid conveying pipe beam impact test method” (applicable to pipe)

ISO180-2000 “plastics – determination of hard material cantilever beam impact strength

GB/T1843-2008 “the hard plastic cantilever beam impact test method”

JB/T8761-1998 plastic cantilever beam impact testing machine,

ASTM D256-2010 “test method for determination of plastic the IZOD pendulum impact strength,

GB – T13525-1992 “plastic tensile impact test method for performance”

Parameters

Main Features

The heavy cast iron base is mechanically designed to avoid any vibrations having an effect on impact testing results.

Dual column impact frame

Standard touch screen display and optional connectivity to a PC for software analysis

Motor-driven raising of the hammer with auto-return after completion of a test

Electromagnet locks the pendulum securely

Fully enclosed testing area for the highest safety while undergoing impact testing

The pendulum height and weight are precisely designed to ensure high accuracy

Simple and easy design to exchange the striking knife to meet ISO or ASTM standards

Designed with a high precision bearing for the most accurate impact results

Quality PLC controller for precision pendulum testing

Optional computer with software control is available for a semi-automatic operation. The operator must only change the specimens while the rest is controlled by the PC.

Optional instrumented version with force transducer within the pendulum for detailed software analysis - enables the user to determine the highest amount of data on their specimens

Character：

cantilever beam, one-piece shock, do not need to remove the clamp and fixed sample

intelligent controller has high precision, and is equipped with LCD display, can be intuitive, accurate reading data

the first domestic use carbon fiber beam (has applied for patent), on the direction of impact, improve the rigidity of materials, and will impact the quality of concentrated in the largest pendulum on the center of mass of truly no vibration impact test, and increase the service life.

imported high resolution digital encoder, Angle test precision is higher and more stable

aerodynamic impact hammer and imported ball bearing, greatly reduced the mechanical friction loss

automatically calculate the final result, test data can be stored 24 group data and averaging

can choose Chinese and English operation interface, test results can choose J/m, KJ / ㎡, kg – cm/cm, ft – ib/in etc

8.Internal microtyping of the printing and testing data
