DescriptionThe STD-TE 92 Rotary Tribometer is a versatile test machine for research and development
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

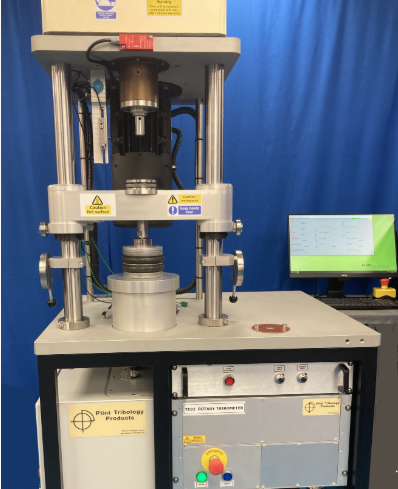

The STD-TE 92 Rotary Tribometer is a versatile test machine for research and development work on materials and lubricants. With axial loading and an open test platform, the machine can accommodate multiple test geometries. Two versions of the machine are available.
Test adapters are mounted on a cross beam with linear bearings mounted on the machine columns, loaded from underneath by a pneumatic bellows with an in-line force transducer for measurement and control of load. There are two interchangeable loading assemblies STD-TE 92/1 and STD-TE 92/2. providing a 500:1 turn-down ratio on load.
The test adapters are placed on a thrust bearing that permits free rotation under the influence of the frictional torque, which is resisted by a strain gauge force transducer.
| STD-TE 92 | TE 92HS | |
| Rotational Speed: | 30 to 3.000 rpm | 30 to 3.000 rpm |
| 60 to 6.000 rpm | 100 to 10.000 rpm | |
| Spindle Bearing Load: | 10.000 N @ 3.000 rpm | 10.000 N @ 3.000 rpm |
| 4.000 N @ 10.000 rpm | ||
| Maximum Spindle Speed: | 6.000 rpm | 10.000 rpm |
| Torque Capacity: | 14 Nm @ 30 to 1500 rpm | 14 Nm @ 30 to 1500 rpm |
| 7 Nm @ 3.000 rpm | 7 Nm @ 3.000 rpm | |
| 3.5 Nm @ 6.000 rpm | 2.1 Nm @ 10.000 rpm | |
| Motor: | 2.2 kW ac @ 1.500 rpm | 2.2 kW ac @ 1.500 rpm |
| 100% overload for 30 seconds | 100% overload for 30 seconds | |
| Vibration Sensor: | piezo-electric | |
| Contact Resistance: | Lunn-Furey Circuit | |
| Interface: | USB Serial Link Interface Module | |
| Software: | COMPEND 2000 | |
| STD-TE 92 + 4 kW Upgrade | TE 92HS + 4 kW Upgrade | |
| Rotational Speed: | 30 to 3.000 rpm | 30 to 3.000 rpm |
| 100 to 10.000 rpm | ||
| Spindle Bearing Load: | 10.000 N @ 3.000 rpm | 10.000 N @ 3.000 rpm |
| 4.000 N @ 10.000 rpm | ||
| Maximum Spindle Speed: | 6.000 rpm | 10.000 rpm |
| Torque Capacity: | 25 Nm @ 30 to 1500 rpm | 25 Nm @ 30 to 1500 rpm |
| 13 Nm @ 3.000 rpm | 13 Nm @ 3.000 rpm | |
| 4 Nm @ 10.000 rpm | ||
| Motor: | 4 kW ac @ 1.500 rpm | 4 kW ac @ 1.500 rpm |
| 100% overload for 30 seconds | 100% overload for 30 seconds | |
| Controlled Parameters | ||
| Rotational Speed | ||
| Temperature | ||
| Load | ||
| Test Duration | ||
| Recorded Parameters | ||
| Rotational Speed | ||
| Friction Torque | ||
| Contact Resistance | ||
| Temperatures | ||
| Number of Revolutions | ||
| Test Duration | ||
| Sliding Speed | ||
| Friction Coefficient | ||
| Sliding Distance |
