Detailed Product DescriptionWorking Power:AC220V±10%, 50HzTemperature Control Accuracy:±1℃Displ
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| Working Power: | AC220V±10%, 50Hz | Temperature Control Accuracy: | ±1℃ |
|---|---|---|---|
| Display Mode: | LED Digital Display | Power Consumption Of The Whole Machine: | ≤1800W |
| Relative Humidity: | ≤85% | Ambient Temperature: | 5℃～40℃ |
| Dimensions: | 270mm×350mm×590mm | Weight: | 15kg |
| Keywords: | Oil Analysis Testing Equipment | Name: | Copper Sheet Corrosion Tester |
| Highlight: | Petroleum Product Testing EquipmentCopper Strip Corrosion Tester MachineASTM D130 Copper Strip Corrosion Tester | ||

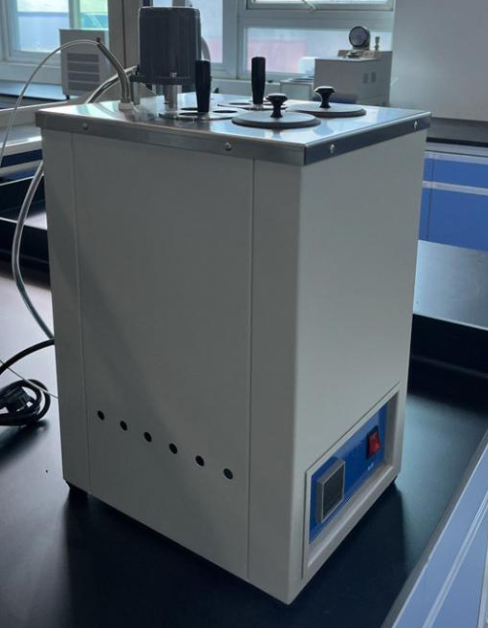

The copper sheet corrosion tester is suitable for the determination of aviation gasoline, jet fuel, motor gasoline, natural gasoline or other hydrocarbons, solvent oil, diesel oil, distillate fuel oil, The extent to which oil, grease, and other petroleum products corrode copper sheets.
GB/T5096.ASTM D130.GB/T 7326.ASTM D4048.SH/T 0232.ISO 6251.SH/T 0023.ASTM D130
The intelligent measurement and control system has self-diagnosis function.
An oil bath with precise temperature control is used for the test bath.
The copper corrosion test time can be set and alarmed.
Adopt PID temperature control technology
Working power | AC220V±10%, 50Hz |
Sensor | PT100 |
Temperature control range | any setting from room temperature to 150°C |
Temperature control accuracy | ±1℃ |
Display mode | LED digital display |
Temperature control heating power | 600W |
Auxiliary heating power | 1000W |
Time control range | any setting from 1 minute to 24 hours |
Time display mode | LCD display |
Experimental wells | 4 |
Number of measurement samples | 4 to 12 |
Sample volume | 30mL |
Ambient temperature | 5℃～40℃ |
Relative humidity | ≤85% |
Power consumption of the whole machine | ≤1800W |
Dimensions | 270mm×350mm×590mm |
Weight | 15kg |
