Detailed product descriptionMeasurement Range:0.0001 ～ 0.9999mgKOH/gAccuracy Acid Value:0.001 ～
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
| Measurement Range: | 0.0001 ～ 0.9999mgKOH/g | Accuracy Acid Value: | 0.001 ～ 0.1mgKOH/g ± 0.01mgKOH/g |
|---|---|---|---|
| Acid Value: | Between 0.1~0.4mgKOH/g, 5% Of The Indicated Value | Repeatability: | 0.02mgKOH/g |
| Resolution: | 0.0001mgKOH/g | Measurement Method: | Neutralization Method |
| Power Supply Voltage AC: | 220V ± 10% 50Hz ± 10% | Ambient Temperature: | 5 ℃～ 40 ℃ |
| Relative Humidity: | ≤ 85% | Overall Dimension: | 480mm × 340mm × 200mm |
| Weight: | 12.5kg | ||
| Highlight: | oil analysis lab equipmentoil analysis equipment | ||

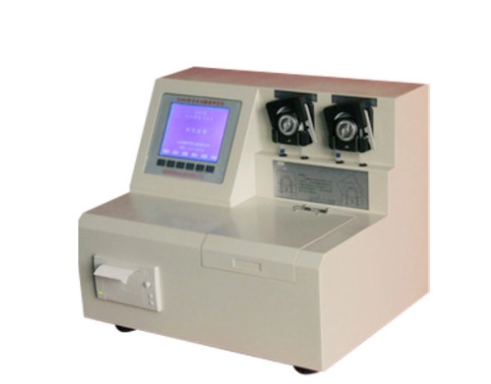

The full-automatic acid value tester is developed according to GB/T264 and is mainly used to measure the acid value of transformer oil, turbine oil and other petroleum products. It can be widely used in power, petroleum, chemical, commodity inspection and scientific research departments.
Double CPU microcomputer control
The detection system adopts imported laser devices, with low power and long service life
Automatic titration to judge the end point
Automatic extraction, neutralization, cup rotation, detection, printing, etc
LCD display, no identification button
| Measurement range | 0.0001 ～ 0.9999mgKOH/g |
| Accuracy Acid value | 0.001 ～ 0.1mgKOH/g ± 0.01mgKOH/g |
| Acid value | between 0.1~0.4mgKOH/g, 5% of the indicated value |
| Repeatability | 0.02mgKOH/g |
| Resolution | 0.0001mgKOH/g |
| Measurement method | Neutralization method |
| Display mode | LCD (240 × 128) |
| Power supply voltage AC | 220V ± 10% 50Hz ± 10% |
| Ambient temperature | 5 ℃～ 40 ℃ |
| Relative humidity | ≤ 85% |
| Overall dimension | 480mm × 340mm × 200mm |
| Thermal Print | |
| Power | 60W |
| Weight | 12.5kg |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
