FeaturesThe whole structure, that is, test box, refrigeration system, air conditioning system,
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

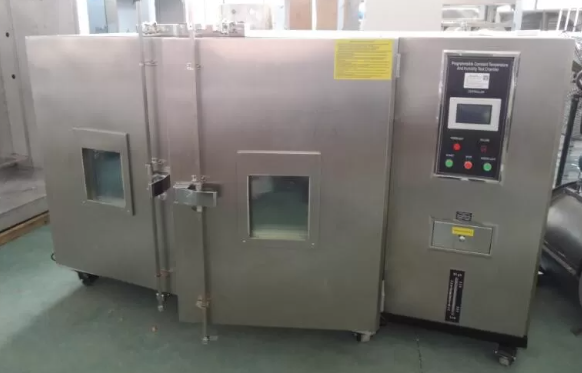

The whole structure, that is, test box, refrigeration system, air conditioning system, electrical control cabinet, refrigeration unit as a whole, the refrigeration unit is located in the bottom of the box, electrical control part of the side of the test chamber, easy to operate.
The box
A) the end of the studio in the duct sandwich, the distribution of heaters, refrigeration evaporator, blast motor, fan and other devices;
B) The test box side with a cable threading hole 1. size ф50mm;
C) The test chamber is made of 1mm thick SUS304 stainless steel plate. The box shell is made of 1mm thick cold plate
D) The studio is equipped with two adjustable stainless steel strip shelves;
| The temperature range | -60 ℃ ~ + 180 ℃ |
| The humidity range | 20% to 98% |
| The temperature fluctuation | ≤ ± 0.5 ℃ |
| The temperature uniformity | ≤ 1 ℃ |
| The temperature deviation | ≤ ± 2.0 ℃ |
| The rise and fall rate | From -20 to + 180 ° C for about 65 min From -20 to 60 ° C for about 85 min |
| Wind speed | 1.7 ~ 2.5m / s |
| Power | about 6Kw |
| Power supply | 380V ± 10% V; 50Hz |
| Interior dimension | 100x100x100cm |
| External dimension | 1470*1400*2100mm (W×D×H) |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
