GB / T2423.22-87Nb GJB1032-90 MIL-STD-2164 / (E / C)
GB / T2423.4-93 GB / T2423.34-86 GJB150.9-86
| Internal size | 400 * 500 * 500mm (width × depth × height); |
| External Dimensions | 500 × 600 × 750mm (width × depth × high) |
| The temperature range | -20 ℃ ~ +150 ℃ |
| The temperature fluctuation | ≤ ± 1 ℃ |
| The temperature uniformity | ≤ 2 ℃ |
| The temperature deviation | ≤ ± 2 ℃ |
| The rise and fall rate | From +20 to -40 ° C for about 45 min From + 20-100 ° C for about 40 min |
| Humidity range | 3 0% -98% R.H (AT + 25 ℃ ~ +85 ℃) |
| Humidity error | + 2 / -3% R.H (75% R.H or more), ± 5% R.H (75% R.H or less) |
| Wind speed | 1.7 ~ 2.5m / s |
| Power | about 6.5Kw |
| Power | 380V ± 10% V; 50Hz |
The above indicators are in the ambient temperature ≤ 25 ℃, atmospheric pressure, no load, no load conditions, from the box wall within 1/6 space measured test;

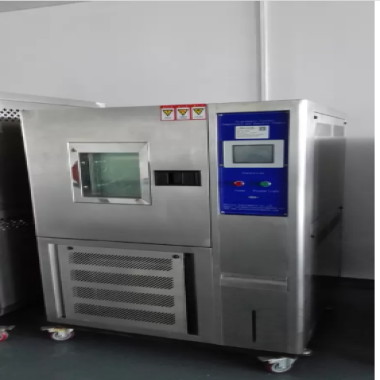

1. Programmable Temperature and Humidity control test chamber
2. Temperature range : -20℃ ～ +150 ℃
3. Humidity range: 20% ~ 98% RH
4. Cooling unit is French TECUMSEH compressor
5. Environment friendly Refrigerant R404A & R23
6. Humidification system with External isolation, stainless steel surface evaporation humidifier
7. Heating element is Independent Nichrome electronic heating system
8. Circulation with cold resistance and low noise centrifugal wind wheel
9. Temperature sensor PT-100 , Resolution: ± 0.01 ℃
10. Humidity sensor dry and wet bulb sensor, Resolution: ± 1%
11. Build- in water tank , 25Liter
12. Programmable color display touch screen controller
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
