The system consists of the following

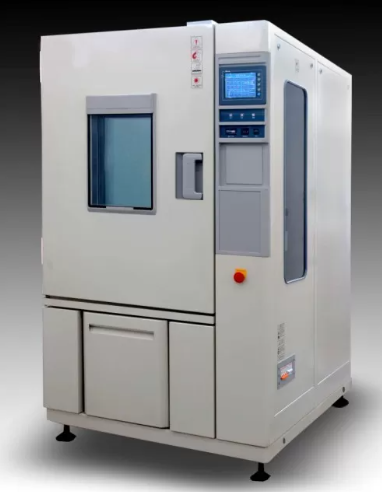

The test chamber is to provide high and low temperature and humidity constant, high and low temperature and humidity alternating test environment; including refrigeration systems, heating systems, humidification / dehumidification / water systems, duct systems, control systems, system safety protection devices.
Inner size | 40*50*40 | 50*60*50 | 50*75*60 | 60*85*80 | 100*100*800 | 100*100*100 |
| External size W*H*DCM | 90*136*154 | 100*146*184 | 100*161*210 | 110*171*237 | 150*186*257 | 150*186*267 |
| Temperature range | -40°C~+150°C (A:-20°C B:-40°C ) | |||||
| Humidity range | 20%~98%R.H.(10%-98%R.H/5%~98%R.H) | |||||
Temp humidity | ±0.1°C;±0.1%R.H./ ±1.0°C;±3.0%R.H.is special optional condition. | |||||
Temperature humidity | ±1.0°C;±2.0%R.H./ ±0.5°C;±2.0%R.H. | |||||
Heat/cooling time | About 5.2°C/min;about 1.2°C/min (5~10°C/min is a special optional condition ) | |||||
| Inner and outer materials | SUS#304 Stainless steel for inner chamber and Carton Advanced cold plate nano paint for outer. | |||||
| Insulation materials | Resistant to high temp ,high density,formate chlorine,ethyl acetum foam insulation materials | |||||
| Cooling system | Air cooling/single segment compressor(-20°C) ,air and water double segment compressor | |||||
| Protection devices | Fuse switch, compressor overload switch, refrigerant high and low pressure protection switch, | |||||
| Parts | Watching window,50mm testing hole,PL internal bulbs,partition plate,dry and wet ball gauze | |||||
| Controller | TEMI” South Korea“TEMI” “OYO” Japan's “OYO” Brand optional | |||||
| Compressor | Original France“Tecumseh”brand | |||||
| Power | 1Φ 220VAC±10% 50/60Hz & 3Φ 380VAC±10% 50/60Hz | |||||
1. Programmable Temperature and Humidity control test chamber
2. Temperature range : -40℃ ～ +150 ℃
3. Humidity range: 20% ~ 98% RH
4. Cooling unit is French TECUMSEH compressor
5. Environment friendly Refrigerant R404A & R23
6. Humidification system with External isolation, stainless steel surface evaporation humidifier
7. Heating element is Independent Nichrome electronic heating system
8. Circulation with cold resistance and low noise centrifugal wind wheel
9. Temperature sensor PT-100 , Resolution: ± 0.01 ℃
10. Humidity sensor dry and wet bulb sensor, Resolution: ± 1%
11. Build- in water tank , 25Liter
12. Programmable color display touch screen controller
