ApplicationsThe test chamber function is to provide high and low temperature and humidity const
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

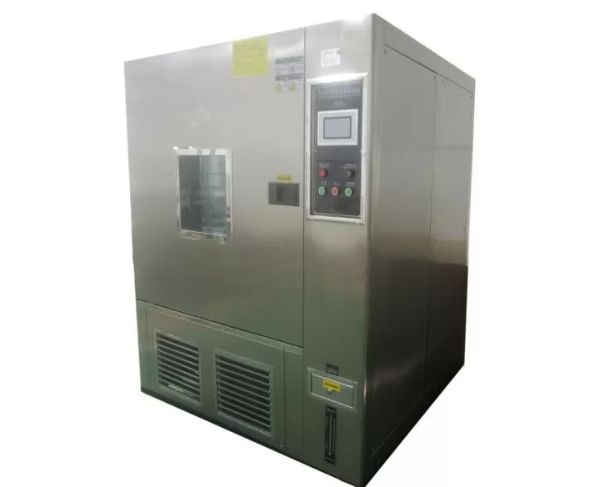

The test chamber function is to provide high and low temperature and humidity constant, high and low temperature and humidity alternating test environment; with refrigeration systems, heating systems, humidification / dehumidification / water systems, duct systems, control systems, system safety protection
| Studio size | 800 × 1000 × 1000mm (depth × width × height) |
| Dimensions | 1300 × 1470 × 2100mm (depth × width × height) |
| Temperature | 20 ° C |
| The temperature fluctuation | ≤ ± 1 ℃ |
| The temperature uniformity | ≤ 1 ℃ |
| The temperature deviation | ≤ ± 2 ℃ |
| The rise and fall rate | From room temperature ~ 20 ℃, about 15min |
| Humidity | 65% R.H |
| Humidity error | +2 / -3% R.H |
| Wind speed | 1.7 ~ 2.5m / s The above indicators are in the ambient temperature ≤ 25 ℃, atmospheric pressure, no load, no load conditions, from the box wall 1/6 space measured test |
| Power | about 8.5Kw |
| Power | 380V ± 10% V; 50Hz |
| Meet the relevant standards and test methods | GB / T2423.22-87Nb GJB1032-90 MIL-STD-2164 / (E / C) GB / T2423.4-93 GB / T2423.34-86 GJB150.9-86 |
1.Studio over-temperature protection;
2.Heater short circuit protection;
3.Humidifier short circuit protection;
4.Fan overload protection;
5.Compressor overpressure protection;
6.Compressor overload protection;
7.Water cut / water protection;
8.Leakage protection;
9.Safe and reliable grounding device
