Features and Benefits1. Precise control of the spray flow rate and nozzle Angle (45°) can truly
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

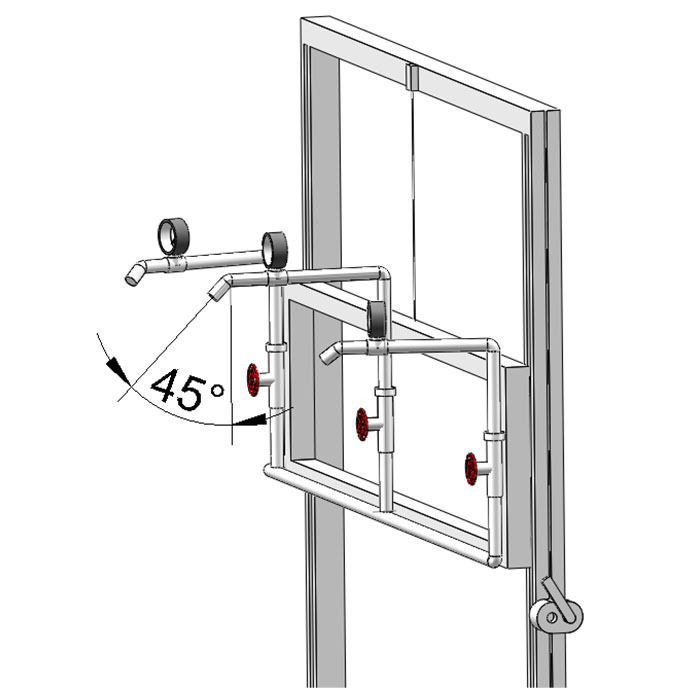

1. Precise control of the spray flow rate and nozzle Angle (45°) can truly reproduce the impact of natural rainfall on outdoor electrical equipment.
2. The nozzle layout is reasonable. Combined with adjustable brackets or turntable devices, it can cover shells of various sizes and structures.
3. Not only applicable to Type 3R, but also the parameters can be adjusted as needed for rain tests of other NEMA grades such as Type 3 and 3S.
4. Assist in certification and product quality control, and meet the requirements of UL 50E standards.
Model | R-UL020 | |
Overall Dimensions (mm) | 800*1500*3800mm | |
Height adjustment range of spray device | 1000-3600mm(Adjustable) | |
Parameter | Number of spray head | 3 spray heads |
Nozzle spacing | 710mm | |
Spraying Hole Diameter | Φ5mm | |
Water pressure | 34.5Kpa | |
Sample platform size | 1000X1400X500mm | |
Load of sample platform load | 100 Kgs | |
Structure | Water Pressure Control | Flow meter |
Water supply system | Automatic water supply, Water purification system | |
Control Box | Display the Spray Mode, Time and Water Pump | |
Material | Material | SUS304 stainless steel |
Sample platform Material | SUS304 stainless steel | |
Environmental Conditional | 5℃～+35 ℃ ≤85% RH | |
Standard | UL 50E Type 3R | |
Power supply | 380V 50Hz 3P | |
