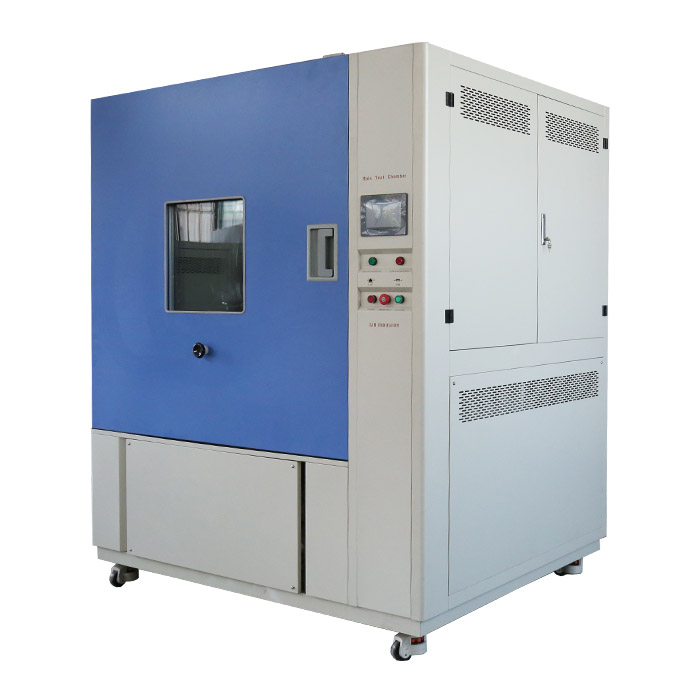

Features and Benefits1. The multi-angle automatic swing pipe sprinkler system features swing pi
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
1. The multi-angle automatic swing pipe sprinkler system features swing pipes of different diameters (400mm / 600mm), and supports switching between 60° (IPX3) and 180° (IPX4) arc-shaped water spray angles.
2. Adjustable flow and pressure precise control system, equipped with high-precision flowmeters and pressure regulating valves, precisely controls the water outlet rate. Spray hole diameter: 0.4mm.
3. Functions such as water shortage protection, motor overload protection, and leakage power-off protection to ensure the safety of personnel and equipment.
4. Customizable cavity size to meet the requirements of different samples, suitable for testing various types of products such as mobile phones, lamps, automotive parts, and electrical control boxes.
Model | R-800C | R-1200C |
Internal Dimensions (mm) | 900*950*950 | 1300*1350*1370 |
Overall Dimensions (mm) | 1180*1420*1920 | 1540*1820*2200 |
Useful Volume (L) | 810 | 2400 |
Oscillating Tube Radius | 400mm | 600mm |
Spraying Hole Diameter | φ0.4mm | |
Hole Spacing | 50 mm | |
Swing Angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
Turntable Rotation Speed | 1r/min (Adjustable speed) | |
Water Pressure Control | Flow meter | |
Controller | Programmable color LCD touch screen controller, Ethernet connection | |
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Observation Window | Double layer insulating glass with wiper | |
