Features and Benefits 1. The water spray test chamber built with water re-circulation system th
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com

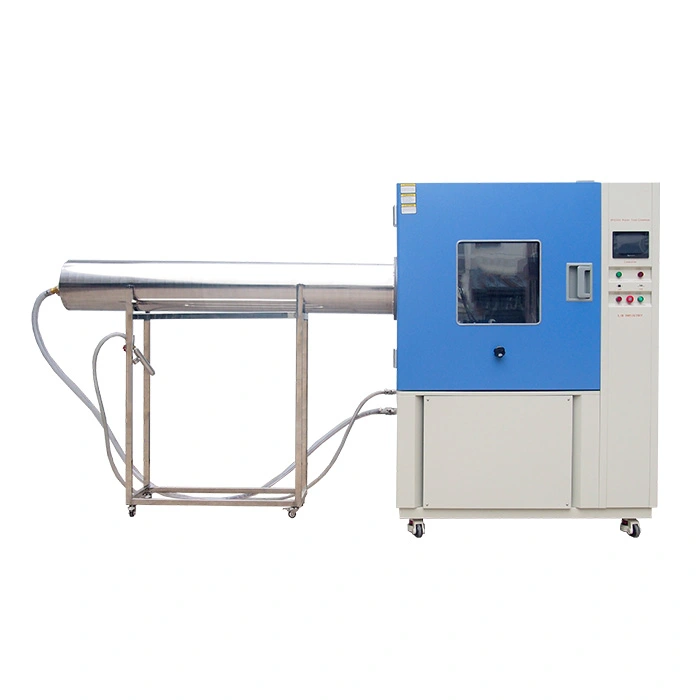

1. The water spray test chamber built with water re-circulation system that reduced water use and a series of water pipes.
2. Its waterproof power connector in the test room can easily supply electricity to the specimen.
3. Our main rain chambers include dripping water test chamber, spraying water test chamber, water jets test chamber and high temperature and high pressure water test chamber.
4. Build a new IP laboratory for you according to your requirements.
Model | R56-800 |
Workroom dimension (mm) | 800*800*800 |
External dimension (mm) | 950*3150*1800 |
Interior Volume (L) | 510 |
Diameter of Turntable (mm) | 600 |
Turntable Rotation Speed | 0~7r/min (Adjustable) |
Internal Diameter of IPX5 Nozzle | 6.3mm |
Internal Diameter of IPX6 Nozzle | 12.5mm |
Water Flow Rate IPX5/ IPX6 | 12.5L/min ±5% / 100L/min ±5% |
Controller | Programmable color LCD touch screen controller, Ethernet connection |
Water Supply System | Water tank, booster pump, Automatic water supply, Water purification system |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection |
Exterior Material | Steel Plate with protective coating |
Interior Material | SUS304 stainless steel |
Observation Window | Double layer insulating glass with wiper |
Qinsun Instruments Co., LTD is a professional laboratory testing instrument manufacturer in China,Have been focusing on laboratory instrument R&D more than 30 years and have rich industry experience,Based on international testing standards,We are also the instrument supplier for BV SGS laboratory,We provide one-stop solutions for lab instruments,Free Training and Turn-Key Service,Products exported all over the world,Offer 36 month warranty and are a trustworthy partner.
