Features and Benefits 1. Different levels of IPX1 to IPX6 waterproof test environment can be si
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
1. Different levels of IPX1 to IPX6 waterproof test environment can be simulated, including vertical drip, 15° tilt drip, drip, splash, spray and strong spray.
2. Parameters such as the amount of dripping water in the drip test, the angle and speed of the oscillating tube test, and the water flow in the spray test can be accurately adjusted according to different test standards and needs.

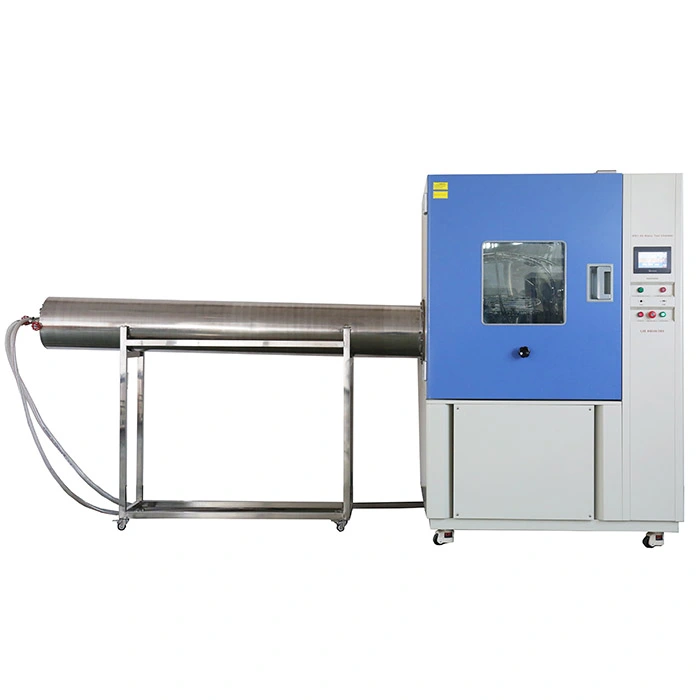

3. The water ip test device is composed of drip tray, oscillating device, water jetting device, turntable, control system, etc., which can easily install and fix the tested sample to ensure the stable position of the sample .
4. Large area observation window allows operators to directly observe sample status during testing, and can also integrate monitoring system.
Model | RD-800C | RD-1200C |
Internal Dimensions (mm) | 900*950*950 | 1300*1350*1370 |
Overall Dimensions (mm) | 1180*1420*1920 (excluding stainless steel tube) | 1540*1820*2200 (excluding stainless steel tube) |
Useful Volume (L) | 810 | 2400 |
Drip Tray Size | 600*600 | 1000*1000 |
Oscillating Tube Radius | 400mm | 600mm |
Water Jetting Tube | 2400mm | 2300mm |
Spraying Hole Diameter | φ0.4mm | |
Hole Spacing | 50 mm | |
oscillating angle of Oscillating Tube | 0 ~ ±180° (Adjustable） | |
Jet nozzles | IPX5: Dia6.3mm, IPX6: Dia12.5mm | |
Jet distance | 2.5~3meter | |
Turntable Rotation Speed | 1r/min (Adjustable speed) | |
Controller | Programmable color LCD touch screen controller, Ethernet connection, USB port | |
Water supply system | Water tank, booster pump, Automatic water supply, Water purification system | |
Safety Device | Over-temperature Protection; Over-current Protection; Water Shortage Protection; Earth leakage Protection; Phase Sequence Protection | |
Exterior Material | Steel Plate with protective coating | |
Interior Material | SUS304 stainless steel | |
Observation Window | Double layer insulating glass with wiper | |
