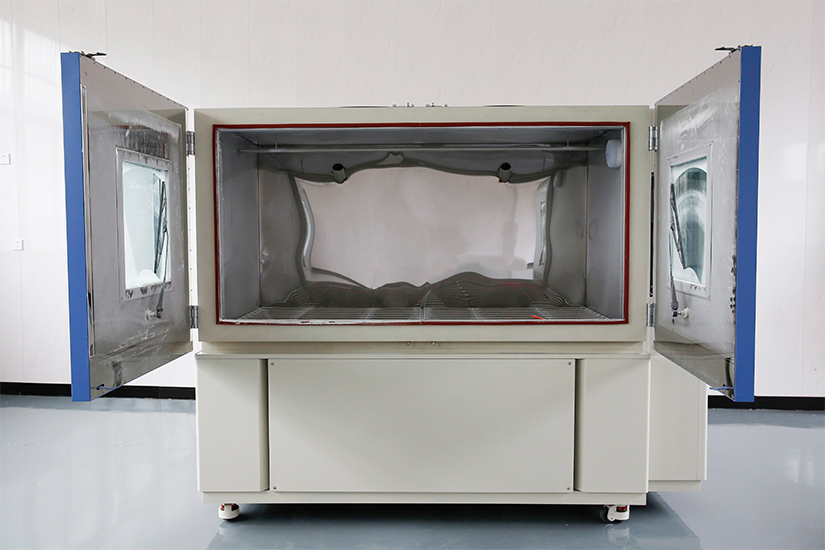

Features and Benefits 1. The static exposure chamber for sand and dust is equipped with a high
WhatsApp : +86 13816217984
Email : info@qinsun-lab.com
1. The static exposure chamber for sand and dust is equipped with a high-efficiency circulating fan and a dust circulation system to ensure the continuous and uniform suspension of dust.
2. Widely applied in outdoor lighting, new energy vehicles, electrical boxes, industrial instruments and other fields.
3. The regular models offer test spaces of 800L, 1000L, 1500L, 2000L etc. Larger or multi-station structures can be customized to meet the testing requirements of products of different volumes.
4. The static exposure chamber for sand and dust has functions such as over-temperature, fan overload, and door lock linkage protection to ensure the safety and stability of the testing process.
Model | DI-800 | DI-1000 | DI-1500 | DI-2000 |
Internal Dimension (mm) | 800*1000*1000 | 1000*1000*1000 | 1000*1500*1000 | 1000*2000*1000 |
Overall Dimension (mm) | 1040*1450*1960 | 1330*1450*1960 | 1330*1950*1990 | 1330*2450*1990 |
Useful Volume (L) | 800 | 1000 | 1500 | 2000 |
Temperature Range | Ambient ~ +50℃ | |||
Humidity Range | < 30% RH | |||
Normal Wire Diameter | 50um | |||
Nominal Width of a Gap Between wires | 75um | |||
Fight Time | 0 ~ 99H59M | |||
Blowing Time | 0 ~ 99H59M | |||
Specimen Power Outlet | Dust-proof socket 16A | |||
Controller | Programmable color LCD touch screen controller, Ethernet connection | |||
Safety Device | Over-temperature Protection; Over-current Protection; Earth Leakage Protection; Phase Sequence Protection | |||
Exterior Material | A3 Steel Plate with protective coating | |||
Interior Material | SUS304 stainless steel | |||
Standard Configuration | Sample shelf, dust wiper, talcum powder(5kgs) | |||
Power | AC380V 50Hz | |||
