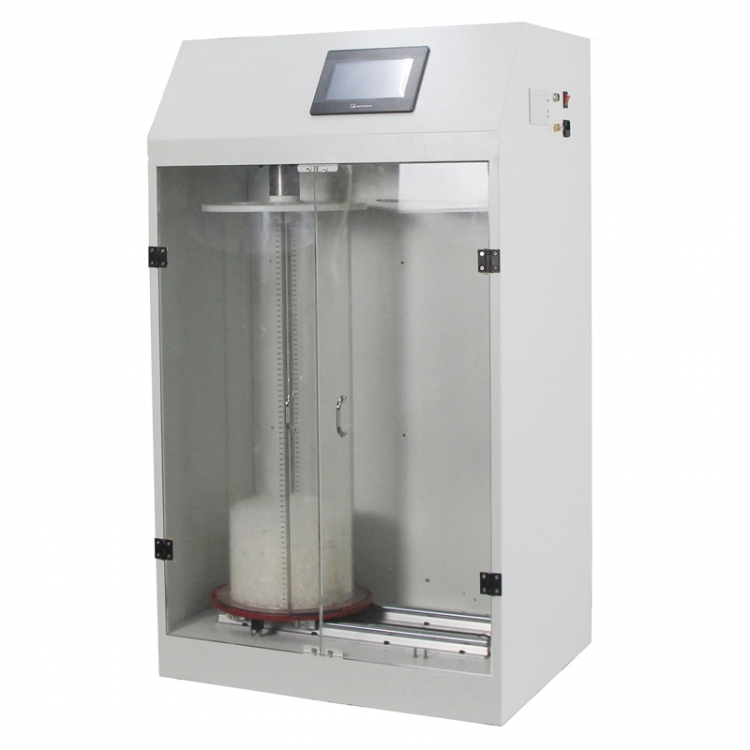

Down Feather Filling Power Tester

Filling power is one of the most important indicators of down feathers and is the main expression of elasticity and warmth. The filling poser test is expressed as the volume of a certain number of down samples passed through a specified container under a certain pressure. The greater the filling power, the greater the amount of still air in the container. The layer of still air is a good insulating layer, so the greater the filling power of the down, the better the warmth of the down product.

Standards:

IDFB Part 10-B(IDFB)

FZ/T 80001

JISL1903

BS EN12130

Application:

Feather and Down Filling Power Tester is applied to determine the filling power of feather and down, and product filling materials.

All kinds of materials can be tested by the Feather and Down Filling Power Tester

Features:

1.It adopts color touch screen display, man-machine dialogue and convenient operation.

2.Unique filter ventilation design, automatic switch between blowing and sucking positions, to ensure that feathers do not fly around, prevent the health of operators.

3.The test speed can be set, suitable for different standards, and the transmission structure adopts servo motor system, which makes the height precision of the bulkiness more precise.

4.The original zero position system ensures the accuracy of the data.

5.Adopt high-precision sensor, ARM 32-bit microprocessor, AD company 16-bit A/D acquisition level, accurately sense the position of the pressure plate, accurately calculate the test results, can be applied to multiple standards.

6.The automatic wind speed design system ensures that the feather is in the natural fluffy state, which makes the data of each measurement have better authenticity and reproducibility.

7.The test process is completed with one click, without manual replacement of the test bucket and timing measurement.

8.Fully automated testing, no need to manually replace the test bucket.

Specifications:

Measuring speed: 520±20mm/min

Measuring height: 750mm

Measuring accuracy: 0.1mm

Graduated cylinder internal diameter: 289±1mm

Plunger and Measuring Rod: diameter: 285mm, weight: 94.3g

Air velocity: (310±50)L/min

Equipped with printer
