Rotary Static Tester

Rotary Static Tester

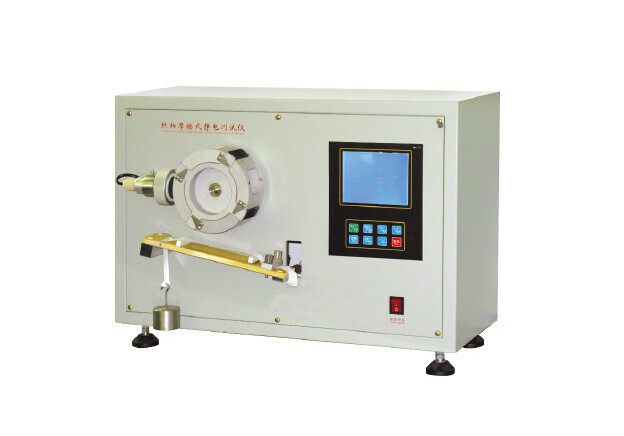

A Rotary Friction Static Tester is used to assess the electrostatic properties of fabrics, yarns, leather, and other sheet materials after acquiring a charge through friction.

Rotary Friction Static Testers, each with its specific features. You can always find a good fit for your laboratory to test the electrostatic properties of various sheet materials.

Standard

JIS L1094

GB/T 12703.5-2020

FZ/T01061

Features

Touch screen control, with English operating systems, and thermal-sensitive printing.

Lightweight design, capable of connecting to a computer, making it convenient for placement inside an environmental chamber for testing.

Automatically records static electricity voltage after friction.

Parameters

1. Electrostatic voltage test range: 0 ~ 3kV, accuracy: ≤± 1%

2. Drum: outer diameter (150±1)mm, width (60±1)mm, speed (400±1) R /min

3. Outer diameter of drum:

4 friction added tension: 500g

5. Spacing between left and right cloth clips :(130±3)mm

6. Measure the distance between electrode and sample :(15±1)mm

7 sample size: 40mm×80mm

8. Standard cloth size: 130mm x 25mm

9. Main machine dimensions: 590mm×515mm×352mm (L×W×H)

10. Overall size: 550mm×700mm×1250mm (L×W×H)

11. Power supply: AC220V± 10% 50Hz 0.6KW

12. Weight: about 96kg

YouTube video introduction : https://www.youtube.com/watch?v=DLJcYgB1Wmg&t=2s
