StandardASTM D624 (Standard Test Method for Tear Strength of Conventional Vulcanized Rubber and Ther
WhatsApp : +86 15601902607
Email : info@qinsun-lab.com

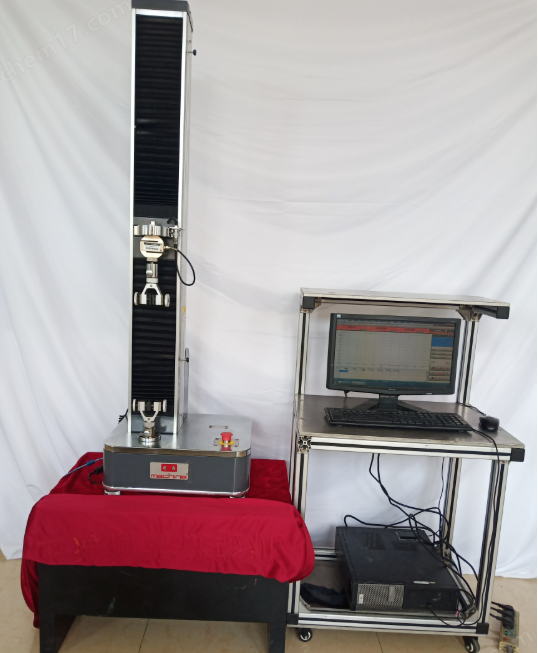

The Automotive Bed Liner Strength Testing Machine is a multi-functional testing system designed to evaluate the mechanical performance of truck bed liners. It provides precise tensile, compression, and shear testing under simulated environmental conditions, delivering high-speed fatigue testing, accurate force measurement, and AI-powered analytics for R&D, quality control, and certification purposes.
(1) Testing tensile strength, elongation, and modulus of truck bed liners.
(2) Evaluating compression resistance and impact deformation of liners.
(3) Assessing shear strength and adhesive bond durability for polymer liners.
(4) Performing accelerated environmental aging tests with temperature and UV exposure.
(5) Suitable for automotive OEMs, materials R&D labs, polymer testing facilities, and regulatory certification bodies.
(1) ASTM D624 – Standard Test Method for Tear Strength of Conventional Vulcanized Rubber and Thermoplastic Elastomers
(2) ISO 37 – Rubber, Vulcanized or Thermoplastic – Determination of Tensile Stress-Strain Properties
(3) SAE J365 – Test Method for Toughness and Energy Absorption of Polymeric Materials
(4) ISO 527 – Plastics – Determination of Tensile Properties (reference)
(5) ASTM D790 – Standard Test Methods for Flexural Properties of Unreinforced and Reinforced Plastics (reference)
| Parameter | Specification |
|---|---|
| Tensile Load Capacity | 0–50 kN (±0.01 kN accuracy) |
| Compression Force | 0–100 kN (±0.02 kN accuracy) |
| Shear Load Capacity | 0–30 kN (±0.005 kN accuracy) |
| Frequency Range | 0.1–25 Hz (adjustable) |
| Temperature Control | -30°C to +80°C (±1°C accuracy) |
| Data Acquisition Rate | 120,000 Hz (32-channel) |
| Power Supply | 220V/110V AC, 50/60Hz, 3.0 kW |
| Dimensions (L×W×H) | 1.6×1.2×2.2 m |
| Weight | 450 kg |
| Operating Environment | 5–40°C, ≤85% RH (non-condensing) |
(1) Multi-axial testing precision with ±0.3% force accuracy.
(2) High-speed fatigue testing up to 25 Hz to accelerate development cycles.
(3) AI-powered analytics for automatic failure prediction and ISO/ASTM-compliant reports.
(4) User-friendly 15.6-inch touchscreen interface with multilingual support.
(5) Environmental simulation with temperature-controlled chamber and UV exposure.
(6) Advanced safety features including overload protection, emergency stop, and laser-guided alignment.
(7) Modular design with interchangeable fixtures for flat, curved, and textured liner surfaces.
(8) Corrosion-resistant frame and IP65-rated enclosure suitable for harsh industrial environments.
(1) Specimen Fixtures – Adjustable clamps for flat panels, curved liners, and textured surfaces.
(2) Calibration Kit – Load cell, extensometer, and NIST-traceable certification.
(3) Safety Gear – Heat-resistant gloves, face shield, and emergency eyewash station.
(4) Software Suite – AI analytics platform with S-N curve generator and automotive OEM reporting templates.
(5) Environmental Chamber – Temperature/UV exposure system with corrosion-resistant lining.
(1) Inspect clamps, fixtures, and moving parts regularly for wear or misalignment.
(2) Calibrate load cells and sensors periodically for accurate measurements.
(3) Keep the environmental chamber clean and check UV lamps for degradation.
(4) Update AI analytics software regularly for compatibility and performance improvements.
(5) Lubricate moving components as specified in the user manual to maintain smooth operation.
The Automotive Bed Liner Strength Testing Machine delivers precise, multi-axial testing under controlled environmental conditions, providing essential data on tensile, compression, and shear performance of truck bed liners. Its combination of high-speed fatigue testing, AI analytics, and modular design ensures reliable results for R&D, quality control, and certification.
(1) What is the Automotive Bed Liner Strength Testing Machine?
It is a multi-functional testing system for evaluating the mechanical performance of truck bed liners under tensile, compression, and shear loads.
(2) What is it used for?
It assesses the durability, strength, and environmental resistance of truck bed liners to ensure performance and safety.
(3) What is the working principle?
The machine applies controlled multi-axial loads while monitoring force, displacement, and environmental conditions, recording data for analysis.
(4) Why is it important?
It allows manufacturers and labs to predict failure modes, optimize materials, and comply with automotive and polymer standards.
(5) What industries is it suitable for?
Automotive OEMs, polymer testing labs, regulatory certification bodies, and materials science research institutions.
