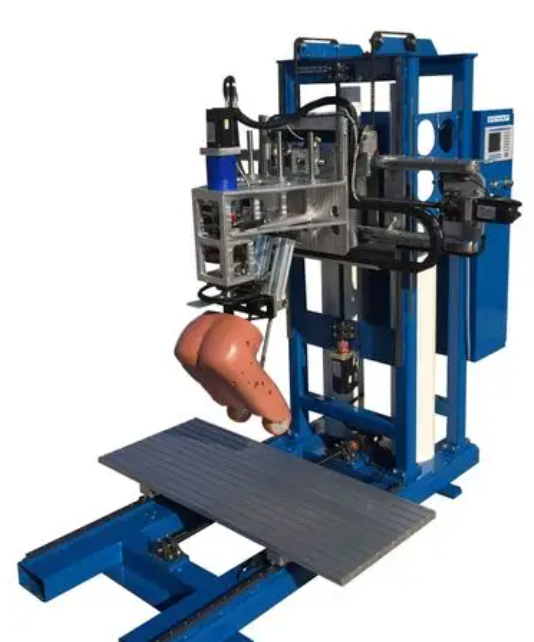

Seat Ingress/Egress Simulation Tester
StandardISO 16840 (Wheelchair Seating - Test Methods for Determining Mechanical Properties)FMVSS 207
Email: info@standard-groups.com
Content
Standard
- ISO 16840 (Wheelchair Seating - Test Methods for Determining Mechanical Properties)
- FMVSS 207 (Federal Motor Vehicle Safety Standard for Seating Systems)
- BIFMA X5.1 (Office Chairs - Standard Test Methods)
Product Advantages
- Human-Centric Simulation
- Programmable motion profiles replicate diverse user demographics (height: 150–195cm, weight: 50–150kg) with ±0.5% force accuracy.
- High-Speed Endurance Testing
- 15 Hz operation accelerates testing cycles, simulating 10+ years of seat usage in weeks.
- AI-Powered Analytics
- Machine learning algorithms predict wear patterns and generate ISO/ASTM-compliant reports automatically.
- User-Centric Operation
- 15.6-inch touchscreen interface with multilingual support (English, German, Chinese, Japanese) and one-touch test protocol selection.
- Modular Expandability
- Interchangeable fixtures for automotive seats, office chairs, and aircraft cabins.
Product Features
- Multi-Axial Motion Control:
- Ingress/Egress Cycles: 0–15 Hz (adjustable) with programmable seat entry/exit angles.
- Weight Simulation: Pneumatic actuators apply dynamic loads (50–150kg) to mimic user movement.
- Environmental Simulation: Temperature (-10°C to +50°C) and humidity (20–80% RH) control for in-use testing.
- Real-Time Monitoring:
- High-speed cameras (500 FPS) and strain gauges capture seat deformation and upholstery wear.
- Safety First:
- Emergency stop, overload protection, and laser-guided motion limits prevent equipment damage.
- Data Management:
- Cloud-compatible software stores 10,000+ test cycles, with barcode scanning for sample tracking.
Technical Parameters
| Parameter | Specification |
|---|
| Load Capacity | 50–150kg (±0.5kg accuracy) |
| Motion Frequency | 0.1–15 Hz (adjustable) |
| Angular Range | ±45° (seat entry/exit angles) |
| Temperature Control | -10°C to +50°C (±0.5°C accuracy) |
| Humidity Control | 20–80% RH (±3% accuracy) |
| Data Acquisition Rate | 50,000 Hz (strain/load channels) |
| Power Supply | 220V/110V AC, 50/60Hz, 1.8kW |
| Dimensions (L×W×H) | 1.5×1.2×2.0 m |
| Weight | 400 kg |
| Operating Environment | 10–35°C, ≤70% RH (non-condensing) |
Accessories Included
- Specimen Fixtures: Adjustable clamps for automotive seats, office chairs, and aircraft seats.
- Calibration Kit: Load cell, angle sensor, and NIST-traceable certification.
- Safety Gear: Heat-resistant gloves, face shield, and emergency eyewash station.
- User Manual & Software: Digital guide (multilingual) + AI analytics platform for wear prediction.
- Environmental Chamber: Temperature/humidity-controlled enclosure with corrosion-resistant lining.
Ideal For:
- Automotive OEMs (seat manufacturers, NVH testing labs)
- Office furniture quality control departments
- Aircraft interior certification bodies
- Ergonomic research institutions
