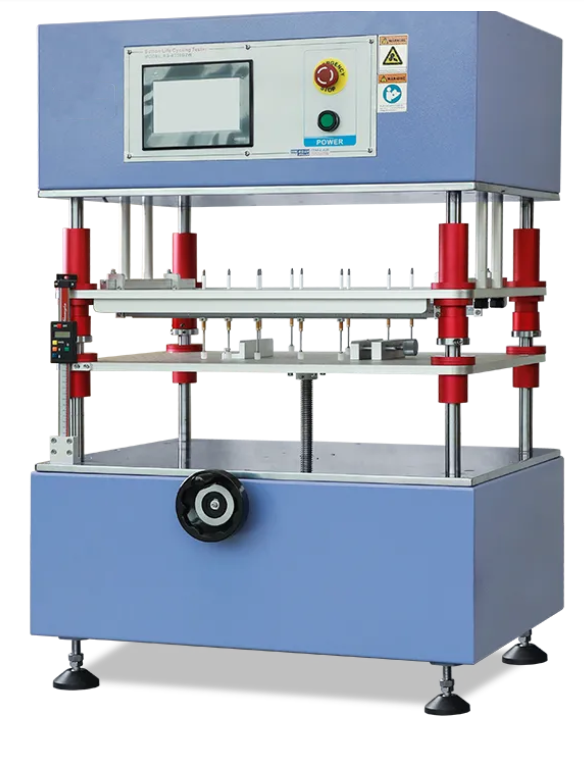

Button Power Tester

Meet the standard:

ASTM E4

Product Introduction:

The force required to press a button is a key characteristic that influences user experience and product quality. Buttons that are too hard to press can be difficult to use, while those that are too sensitive might be activated accidentally. A Button Power Tester provides an objective way to quantify this operating force.

The tester typically consists of a force sensor (load cell) attached to a probe or indenter tip. The tip is designed to contact the surface of the button being tested. The tester applies a controlled force to the button, usually by moving the probe downwards at a consistent speed or applying a gradually increasing force. The instrument monitors the force being applied. A mechanism or sensor detects when the button is activated. This activation can be defined in several ways, such as when an electrical contact is made, when a specific displacement or travel is reached, or when a distinct change in the force-displacement curve (like the "click" force in a tactile switch) is detected by the accompanying software.

The force measured at the point of activation is recorded as the button's operating force or "button power." More sophisticated testers can also measure the displacement of the probe as force is applied, generating a force-displacement curve that provides a more detailed profile of the button's tactile characteristics, including peak force, click force, pre-travel, and over-travel. The test can be performed manually with a simple force gauge or automatically with a motorized test stand and integrated sensors and software.

The instrument is used in laboratories and manufacturing facilities for:

Measuring the operating force or actuation force of buttons, switches, and keypads.

Evaluating the tactile feel and consistency of buttons during product development and manufacturing.

Quality control to ensure that buttons meet specified force ranges.

Benchmarking the performance of different button designs or suppliers.

Research and development of user interfaces and input devices.

Ensuring products meet ergonomic requirements.

Product Advantages:

Provides objective, quantitative measurement of the force required to activate a button.

Essential for evaluating tactile feel, usability, and ergonomic compliance.

Helps ensure consistency and quality in button manufacturing.

Verifies compliance with design specifications for operating force.

Automated versions improve repeatability and efficiency of testing.

Useful for quality control, product development, and material comparison.

Product Features:

Force sensor (load cell) to accurately measure the applied force.

Probe or indenter tip designed to contact the button surface, often with interchangeable tips to match different button shapes.

Mechanism for applying force or controlling displacement onto the button, ranging from a simple hand-held gauge to a motorized test stand.

(For more advanced testers) Displacement sensor to measure the travel of the probe during the test.

Trigger or detection system to sense when the button has been activated (e.g., electrical contact detection, software analysis of force/displacement data, signal input from the product).

Digital display showing the measured force, peak force, or activation force.

(For automated testers) Automated control system for programming test speed, force limits, displacement limits, and triggers.

Data acquisition and analysis software to record force and displacement data (for curves), calculate key parameters, and generate test reports.

(For test stands) Fixtures to hold the product or button assembly securely during testing.
